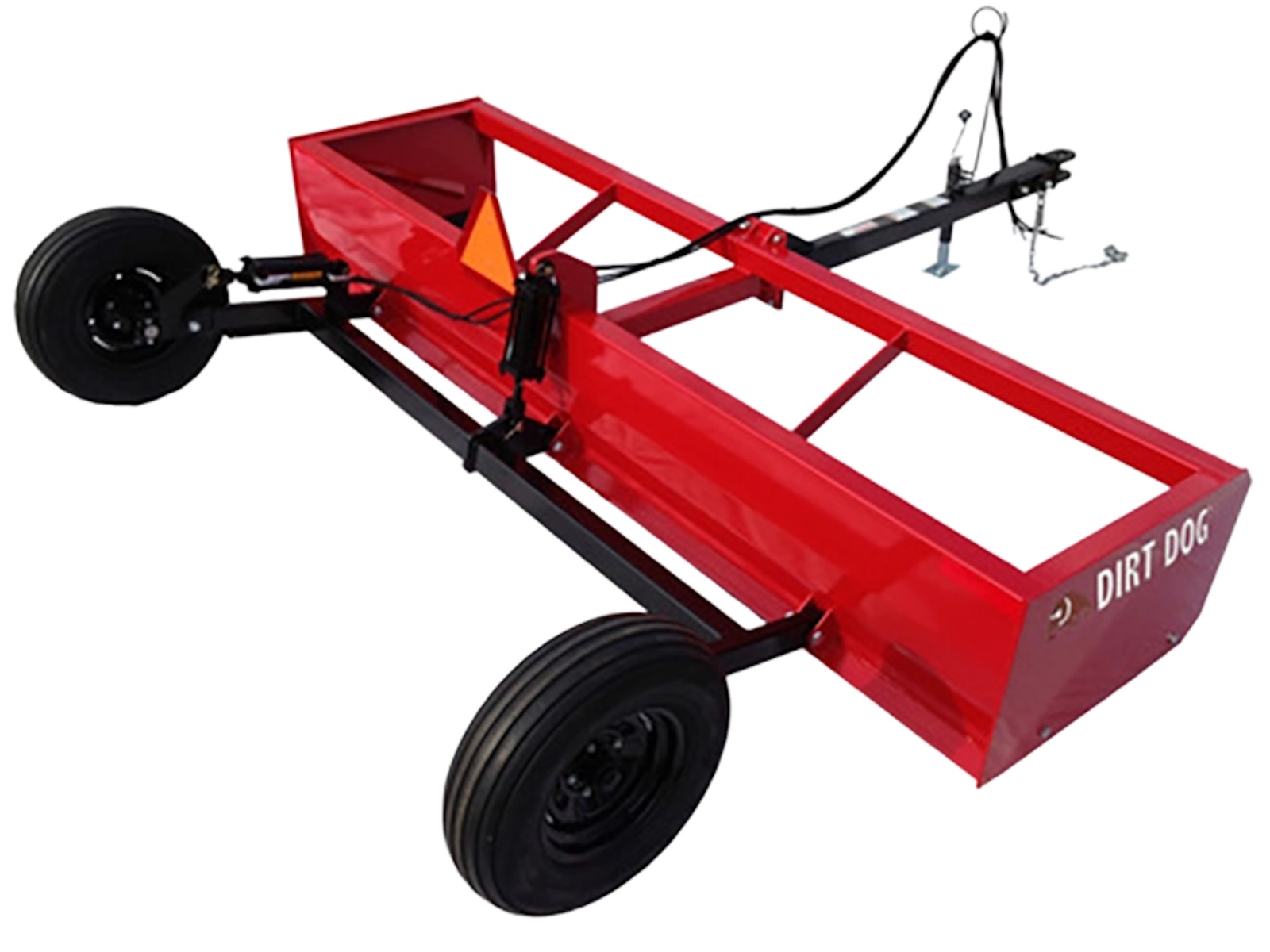

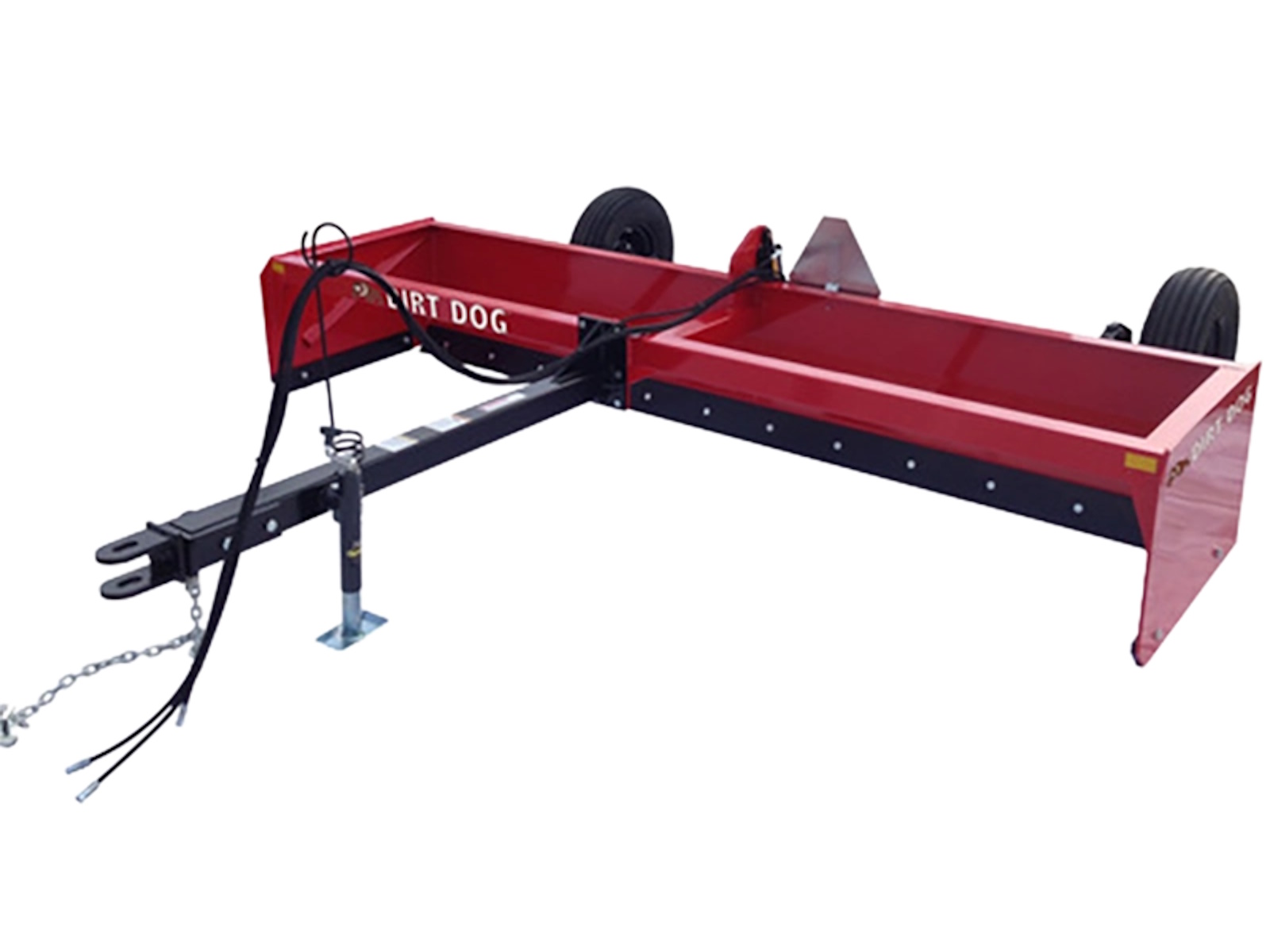

    2026 Erskine Attachments DSP 10 ft

    The DSP Pull-Type Drag Scraper is built for high-volume material movement, leveling, and finish grading. Designed for larger tractors, it efficiently cuts, carries, and redistributes material across job sites. With optional tilt axle capability, it adds versatility for sloping, ditching, and precision grading applications.

    • High-Capacity Earthmoving: Designed to move large volumes of material efficiently across job sites.
    • Optional Tilt Axle Functionality: Allows angled cutting for ditching, terracing, and sloped grading applications.
    • Efficient Material Flow Design: Cuts from high areas and redistributes material into low spots for smooth grading.
    • Durable Wear Components: Replaceable side wear plates extend service life in demanding conditions.
    • Pull-Type Efficiency: Optimized for towing behind larger tractors to maximize productivity and coverage.
    • Versatile Grading Applications: Handles leveling, spreading, and finish grading across agricultural and construction environments.

    Features May Include:

    • Designed for 70–125 HP tractors
    • Pull-type drag scraper for high-volume material movement
    • Standard fixed axle with optional tilt axle
    • Tilt axle enables sloping, ditching, and terracing
    • Cuts, carries, and redistributes material in fewer passes
    • Ideal for leveling and finish grading applications
    • Material flows from high areas to fill low spots
    • Raise scraper to deposit and spread material
    • Available in 8, 10, and 12 ft working widths

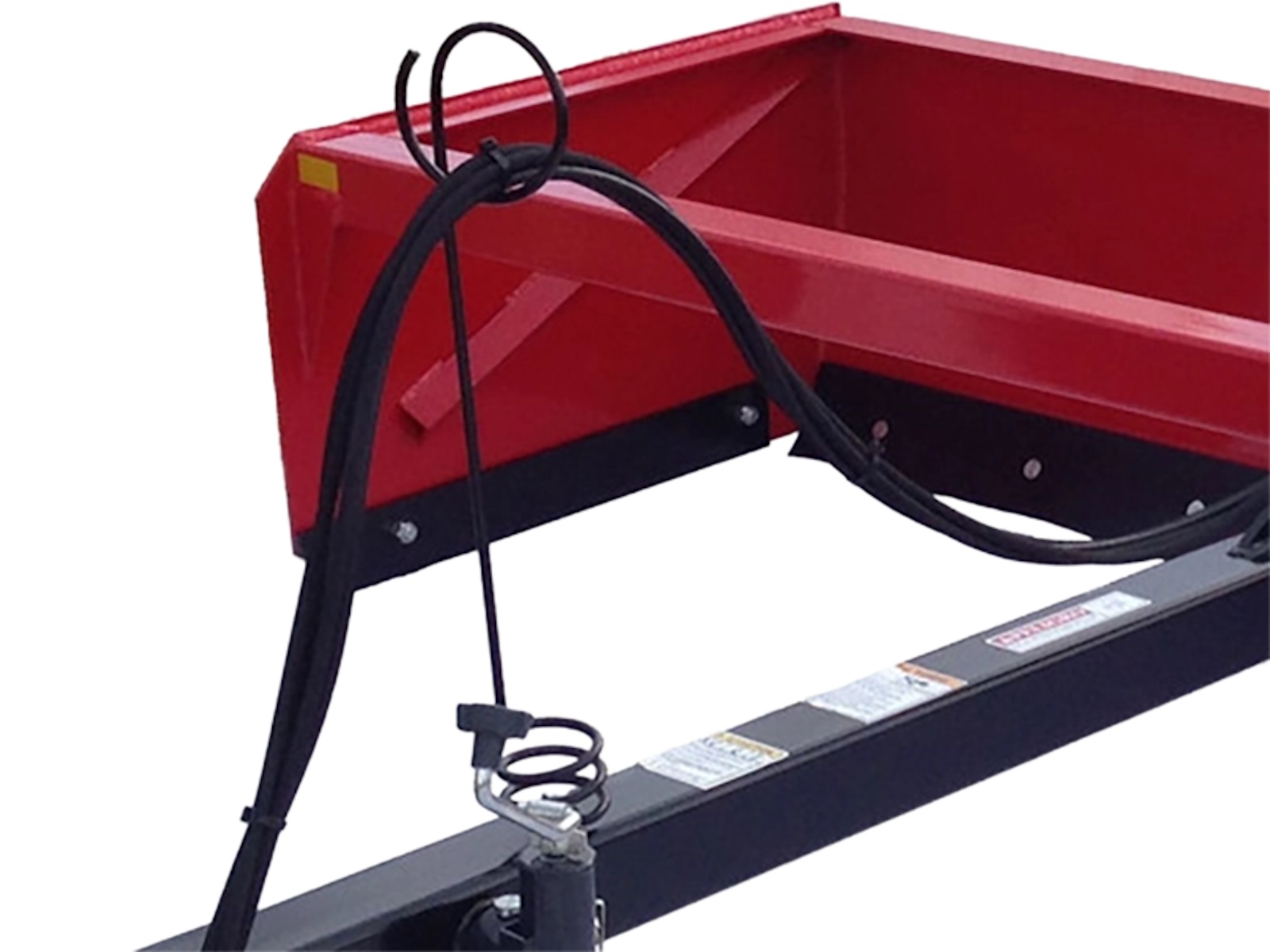

    • Replaceable side wear plates for extended service life

    Info

    Industry

    Agriculture

    Make

    Erskine Attachments

    Model

    DSP 10 ft

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Implement / Attachment

    Subcategory

    Box Blade


    Specs

    Notes

    Capacity: 2.25 yd³ | Box depth: 39 in | Dump clearance: 5 in below grade | Max tilt depth: 7 5/8 in | Max tilt angle: 3 1/2° | Tongue construction: 4 in × 4 in tubing | Side plates: 3/8 in steel | Moldboard: 1/4 in formed steel | Cutting edge: 1/2 in × 6 in reversible | Max speed: 20 MPH | Lift cylinder: 3 1/2 in × 8 in

    Width

    Transport: 121 in | Working: 120 3/16 in

    Weight

    (Tilt Axle): 1,645 lb. | (Fixed axle): 1,525 lb. | Box capacity: 760 lb.
