    Description

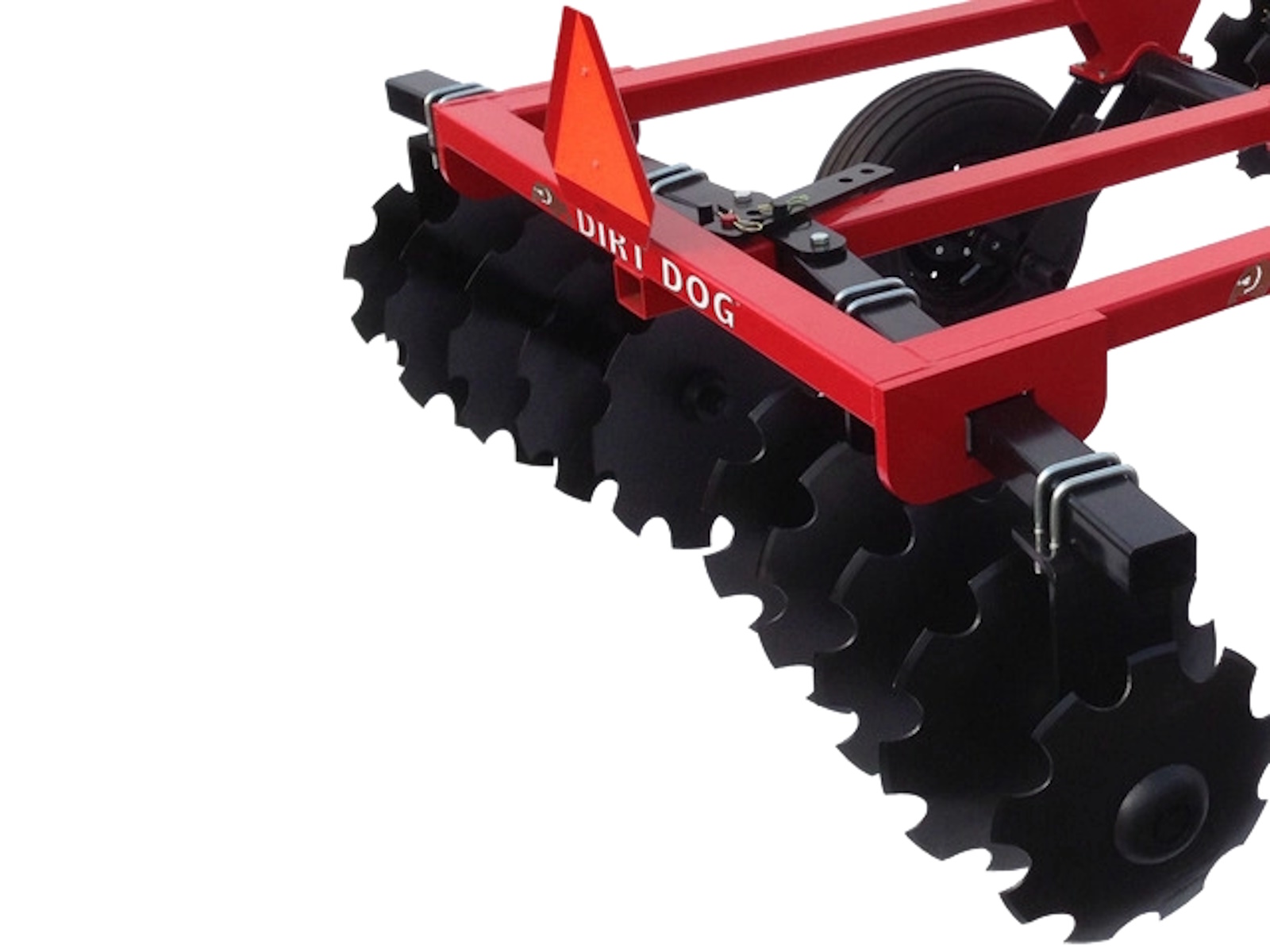

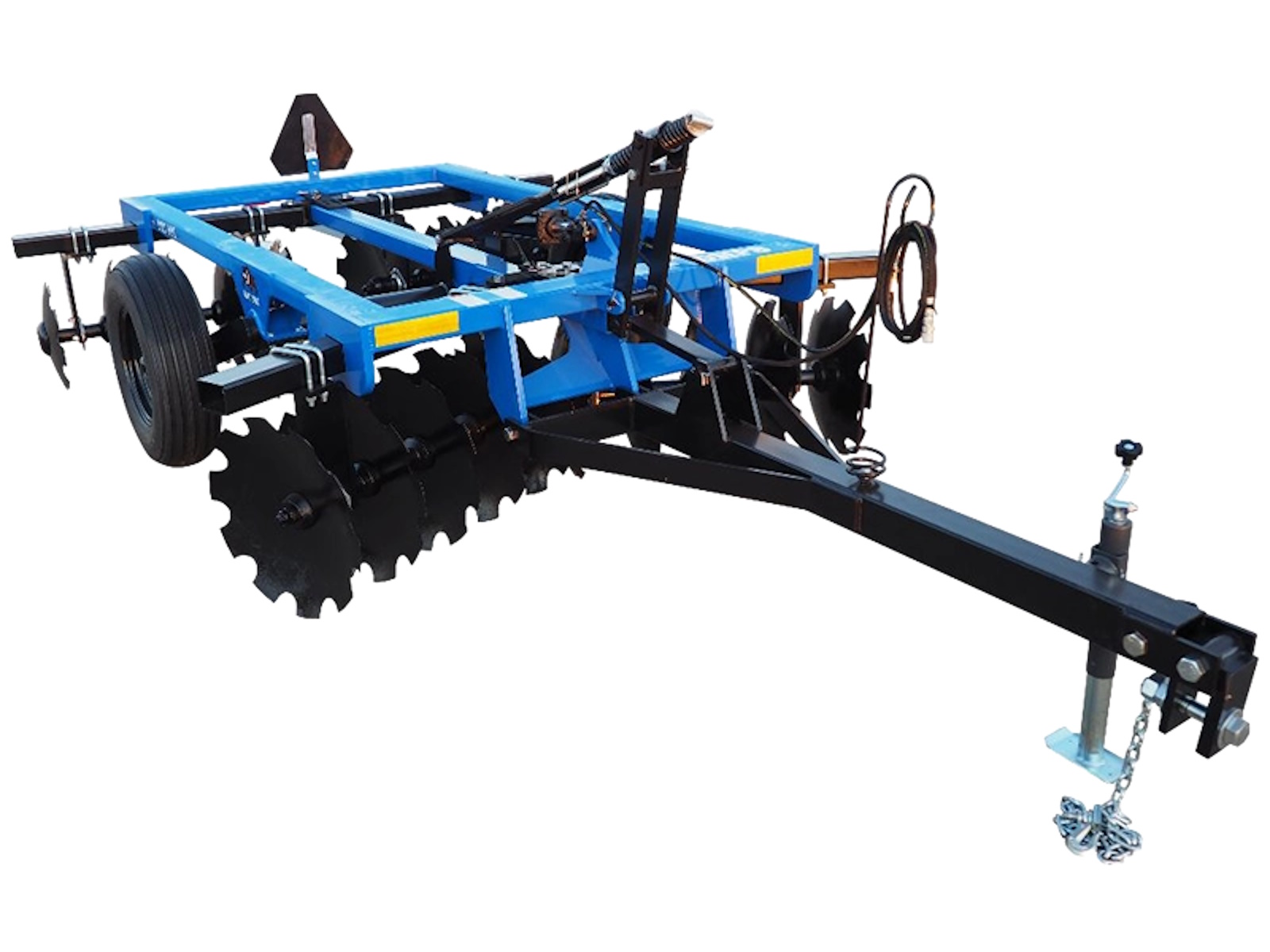

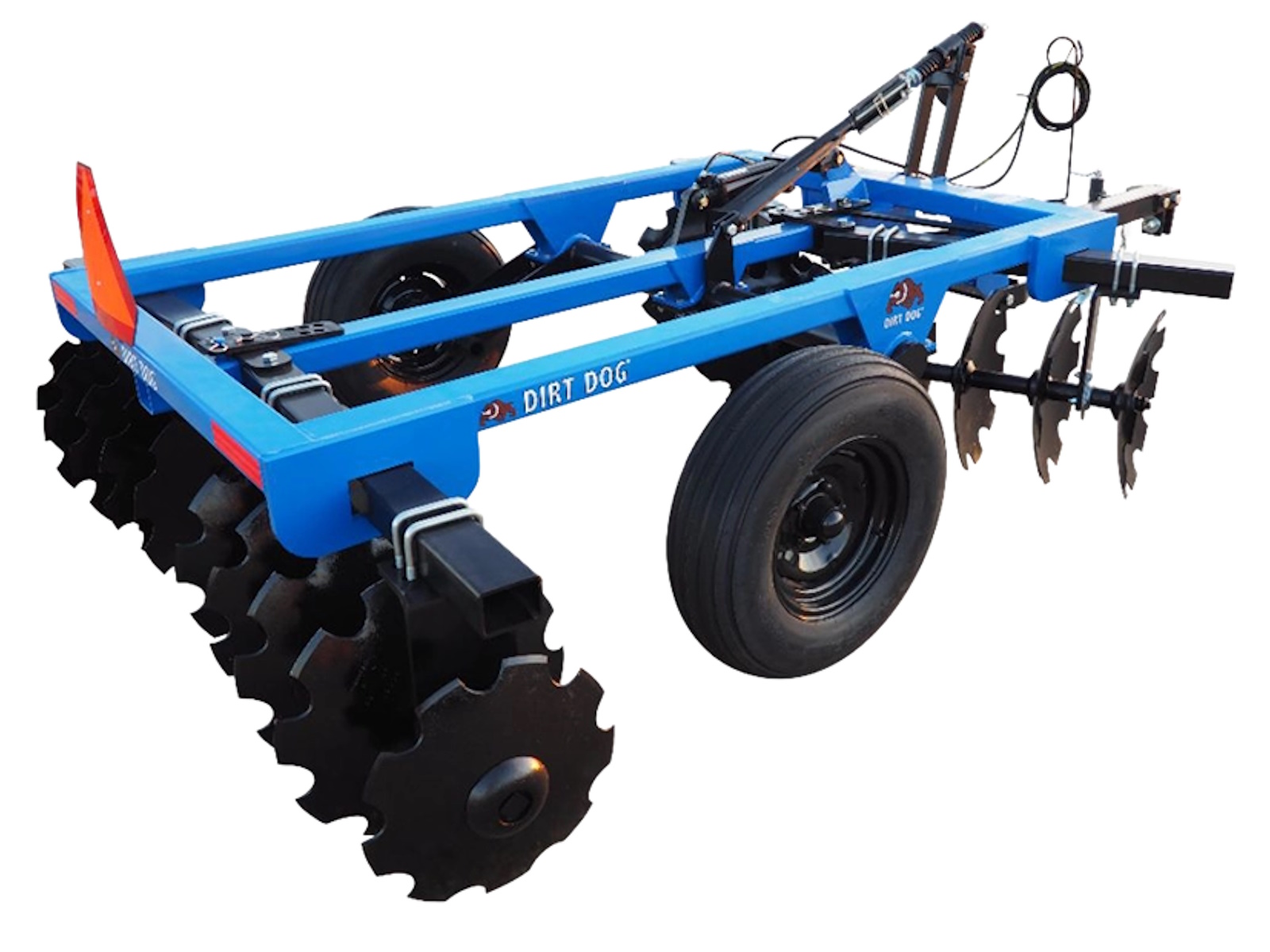

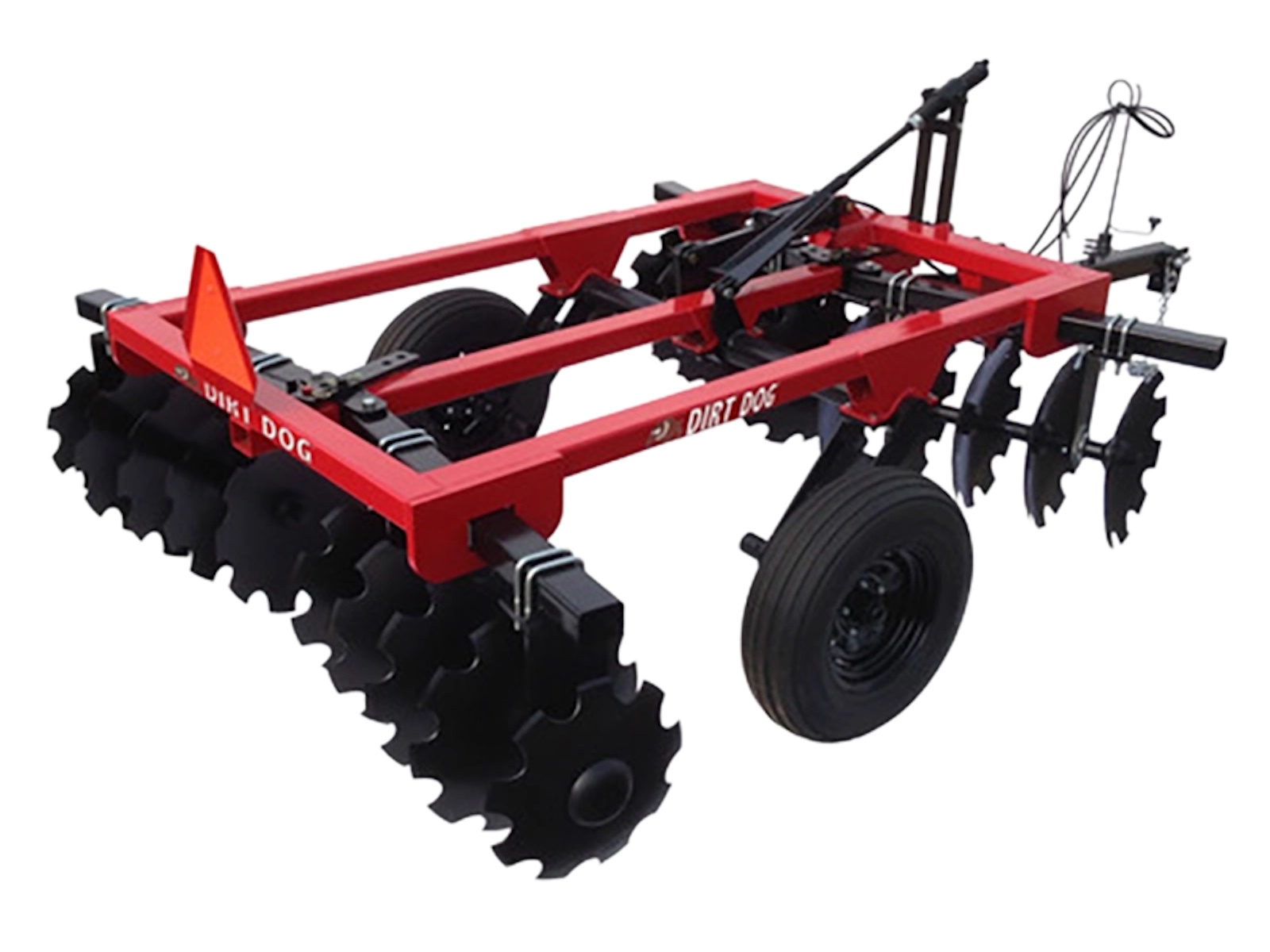

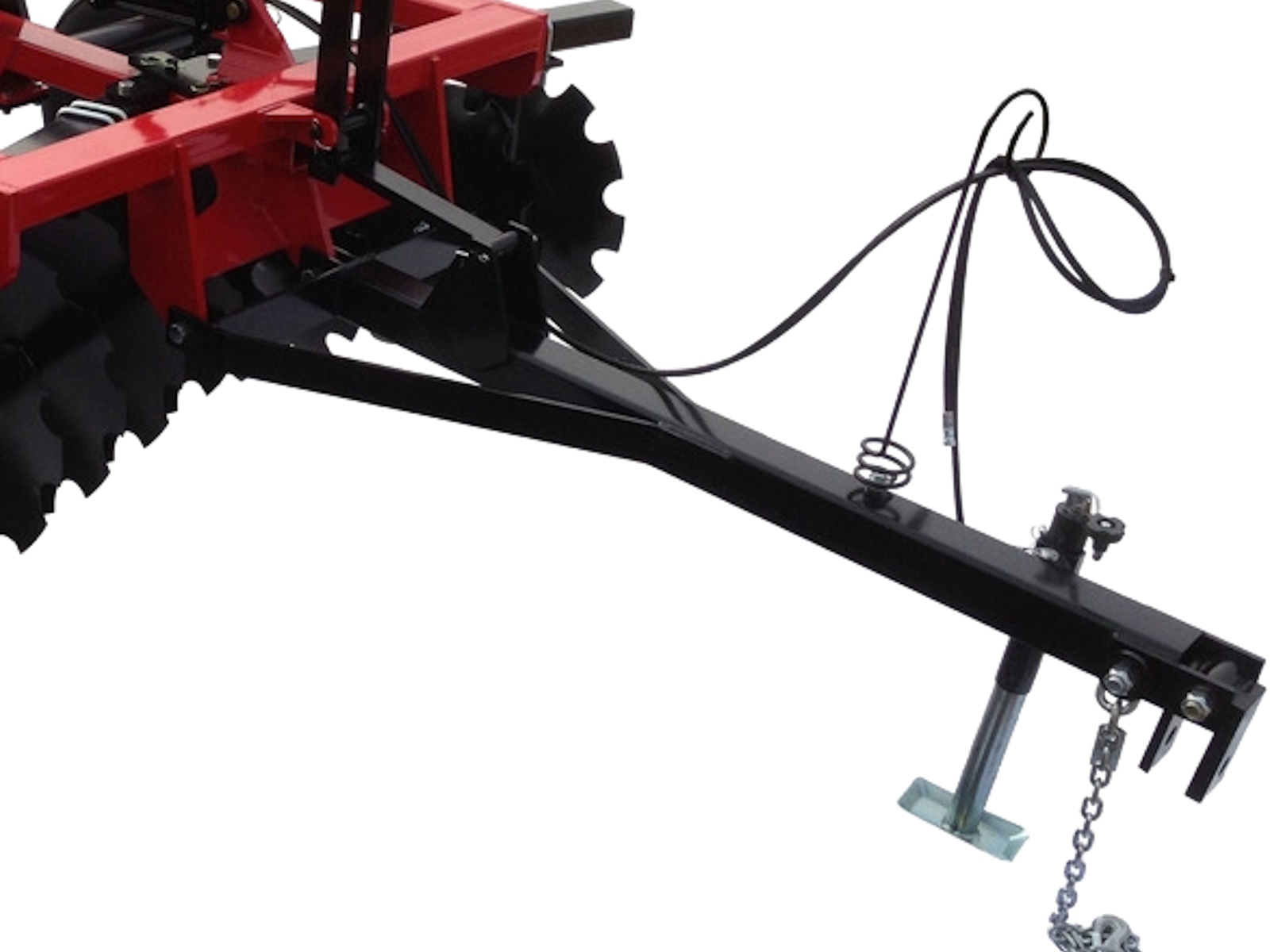

    2026 Erskine Attachments DHP12

    The DHP Series Pull Disc Harrow is built for efficient soil preparation, residue incorporation, and seedbed finishing across larger properties and demanding applications. Designed for tractors from 35–100 HP, it delivers consistent performance with adjustable gang angles, multiple disc spacing options, and a durable frame. Ideal for food plots, farming, and construction site prep, it provides the flexibility and strength needed for a wide range of tillage conditions.

    • Adjustable Gang Angles: Front and rear gang angles can be adjusted to control cutting aggressiveness and adapt to different soil conditions.
    • Flexible Disc Spacing Options: Choose from 7 1/2 in or 9 in spacing configurations to match finish requirements or break up tougher ground.
    • Heavy-Duty Frame Construction: Built with a reinforced 4 in × 3 in frame and heavy gang components for strength and durability in demanding applications.
    • Triple-Sealed Bearing System: Greaseable, triple-sealed ball bearings provide long service life and reliable performance in harsh environments.
    • Spring Leveling System: An adjustable spring leveling system helps maintain consistent ground contact and improved finish quality.
    • Multiple Configuration Options: Available with different widths, spacing combinations, and optional features to match a wide range of applications.

    Features May Include:

    • Designed for tractors from 35–100 HP
    • Available in 8 ft, 10 ft, and 12 ft models
    • 7 1/2 in or 9 in disc spacing options
    • Adjustable front and rear gang angles
    • Sealed, self-aligning ball bearings
    • Heavy-duty gang components and axles
    • Spring leveling system for consistent results
    • Optional scraper kits and dual wheels available
    • Available in multiple color options

    Info

    Industry

    Agriculture

    Make

    Erskine Attachments

    Model

    DHP12

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Implement / Attachment

    Subcategory

    Harrow


    Specs

    Notes

    Disc size: 20 in or 22 in | Disc spacing: 7 1/2 in or 9 in | Bearing type: greaseable & triple sealed | Number of bearings: 12 | Front gang angles: 15°,16.5°,18°,19.5°,21° | Rear gang angles: 12°,13.5°,15°,16.5°,18° | Hitch: pull-type clevis

    Width

    Transport: 12 ft 4 in | Max: 12 ft | Mainfram: 93 1/2 in

    Power/Horsepower

    55 - 100 HP

    Weight

    Per blade: 82 - 92 lb.
