2026 Manitou Group 1050R
Get in Touch
Description

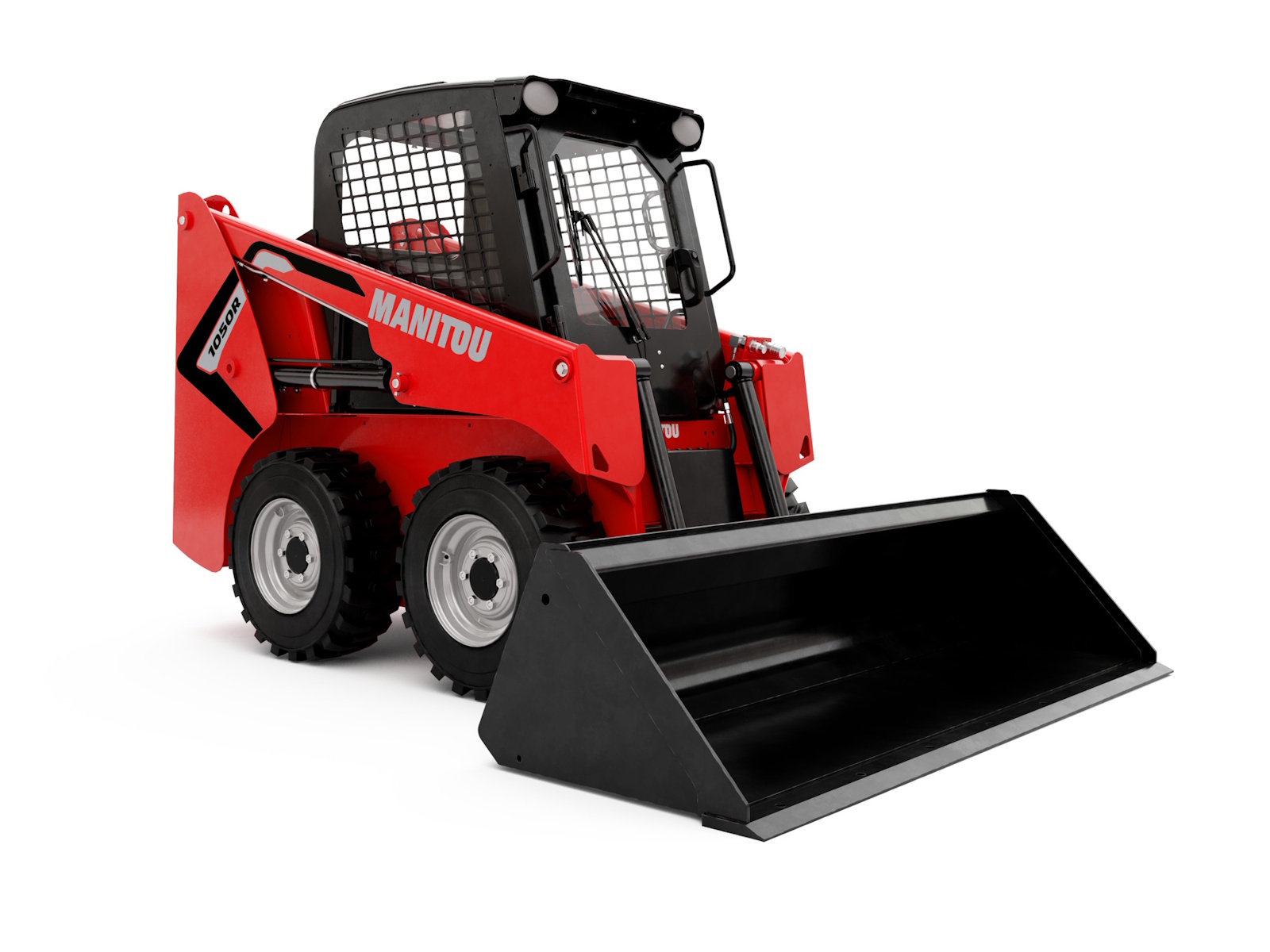

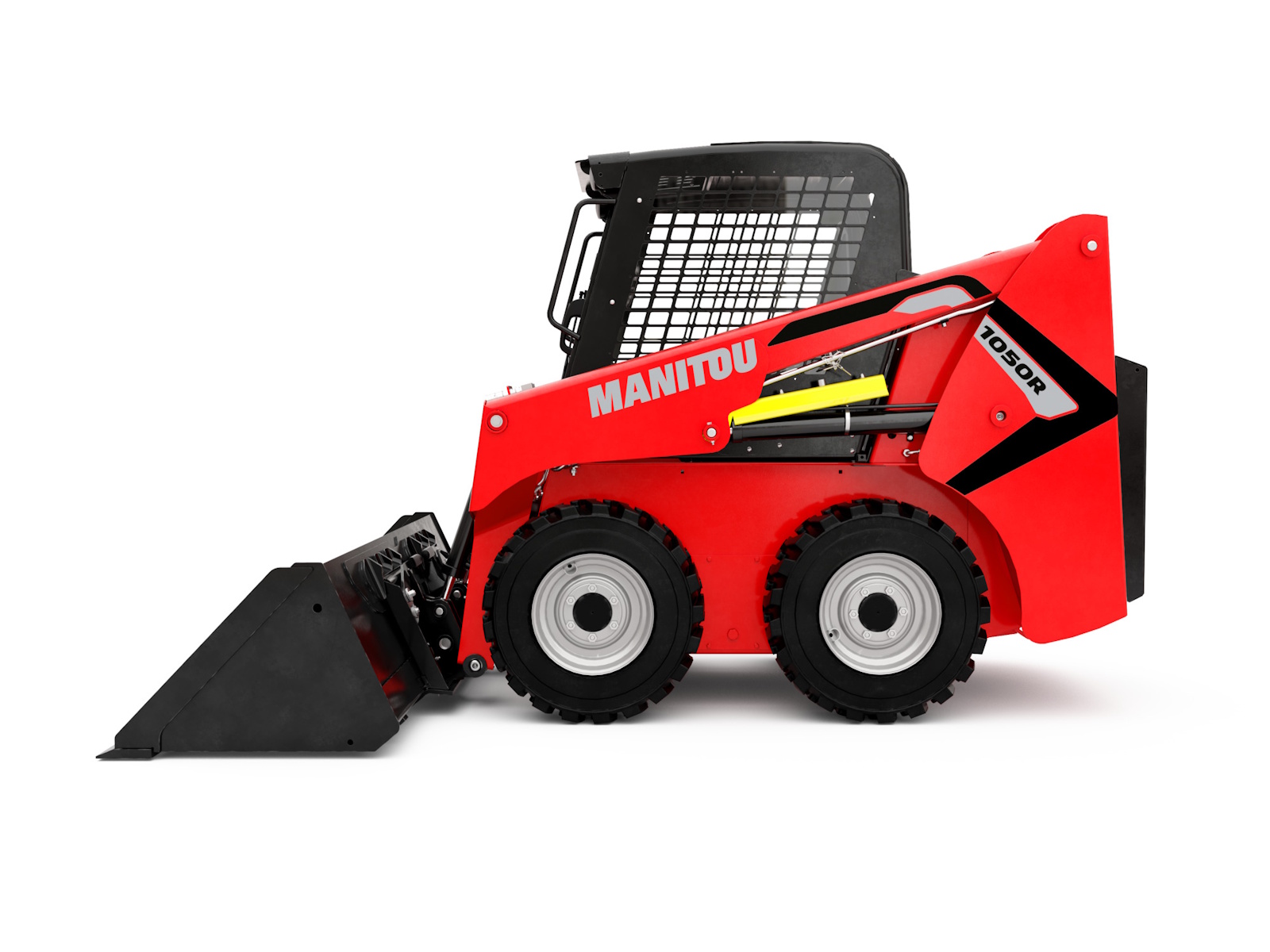

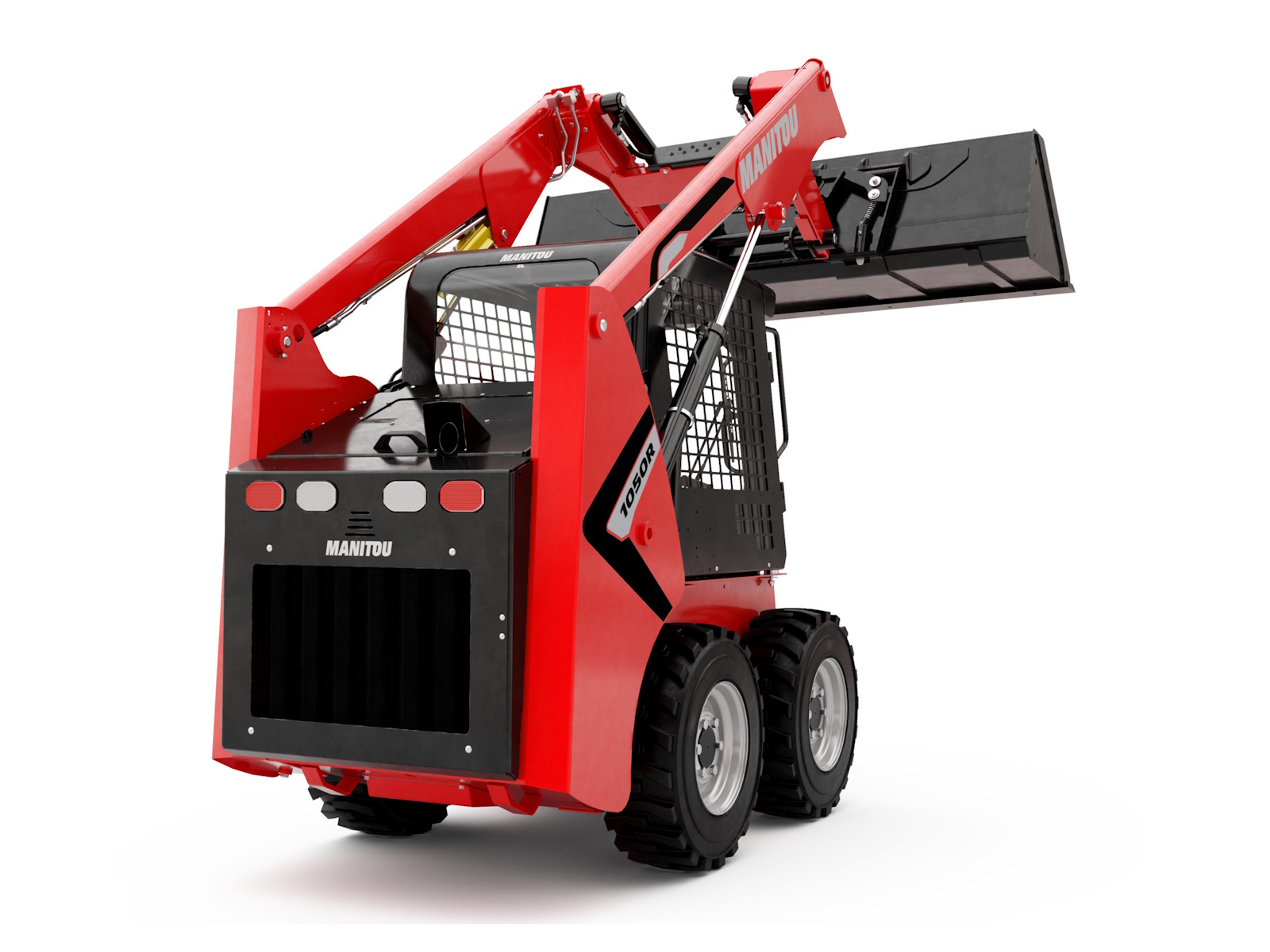

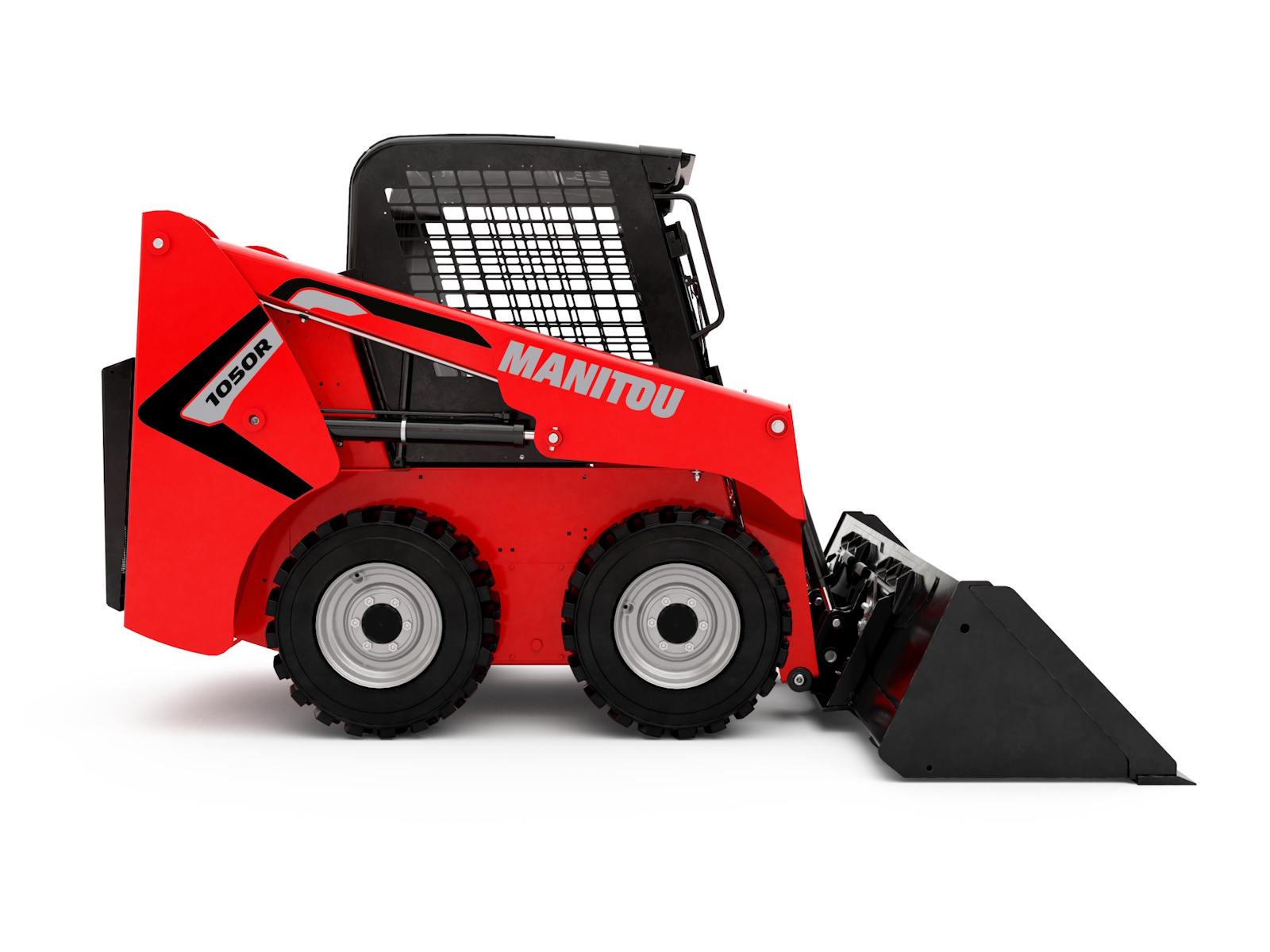

2026 Manitou Group 1050R
Carry out your leveling, loading and grading tasks with ultra-compact 1050 R skid loader. The compactness of this Manitou loader and the ergonomic driving position allows you to operate easily, even in the most confined, difficult to access spaces. Enjoy the versatility of the ultra-compact 1050 R skid loader to perform your various operations in - transporting, loading, unloading, height positioning and change out attachments within minutes to complete multple projects at a time.
Info
Industry
Agriculture
Make
Manitou Group
Model
1050R
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Notes
Rollback at ground: 29 ° | Departure angle: 26 ° | Clearance Radius - Front with Bucket: 69 in | Travel speed (unladen) 6 mph | Standard flow - Auxiliary hydraulics 15 US gpm | Auxiliary Hydraulic Pressure 2750 PSI | Noise to environment (LwA): 101 dB | Noise at driving position (LpA): 80 dB | Whole-Body Vibration (ISO 2631-1): 3 ft/s² | Vibration on hands/arms: < 3 ft/s²
Ground Clearance
6 in
Length
Overall length with bucket: 114 in | Overall length - Less Bucket: 89 in
Wheelbase
34 in
Cylinders
Fuel Type
Diesel
Fuel Capacity
10 US gal | Hydraulic tank capacity: 8 US gal
Engine
Yanmar | Tier 4
Displacement
0.42 US gal
Width
Overall width less bucket: 48 in | Bucket Width: 55 in
Weight
Unladen weight: 4200 lb
Height
Seat to ground height: 33 in | Overall Operating Height - Fully Raised: 140 in | Height to Hinge Pin - Fully Raised: 108 in | Overall Height to top of ROPS: 70 in | Dump angle at full height: 42 ° | Dump height: 84 in | Dump reach - Full height: 23 in
Power/Horsepower
34.20 Hp / 24.70 kW
Tires
27 x 8.5 x 15 HD
Load Capacity
Rated Operating Capacity: 1049 lb
Torque
80 ft/lbs / 2800 rpm
Battery
Battery voltage: 12 V
Alternator
40 kW
Starter
2.30 kW
