John Deere 325 P-Tier
Get in Touch
AT A GLANCE
Industry
Heavy Equipment
Make
John Deere Construction
Category
Compact Construction Equipment
Year
2027
Model
325 P-Tier
Trim
Base
Subcategory
Compact Track Loader
Description

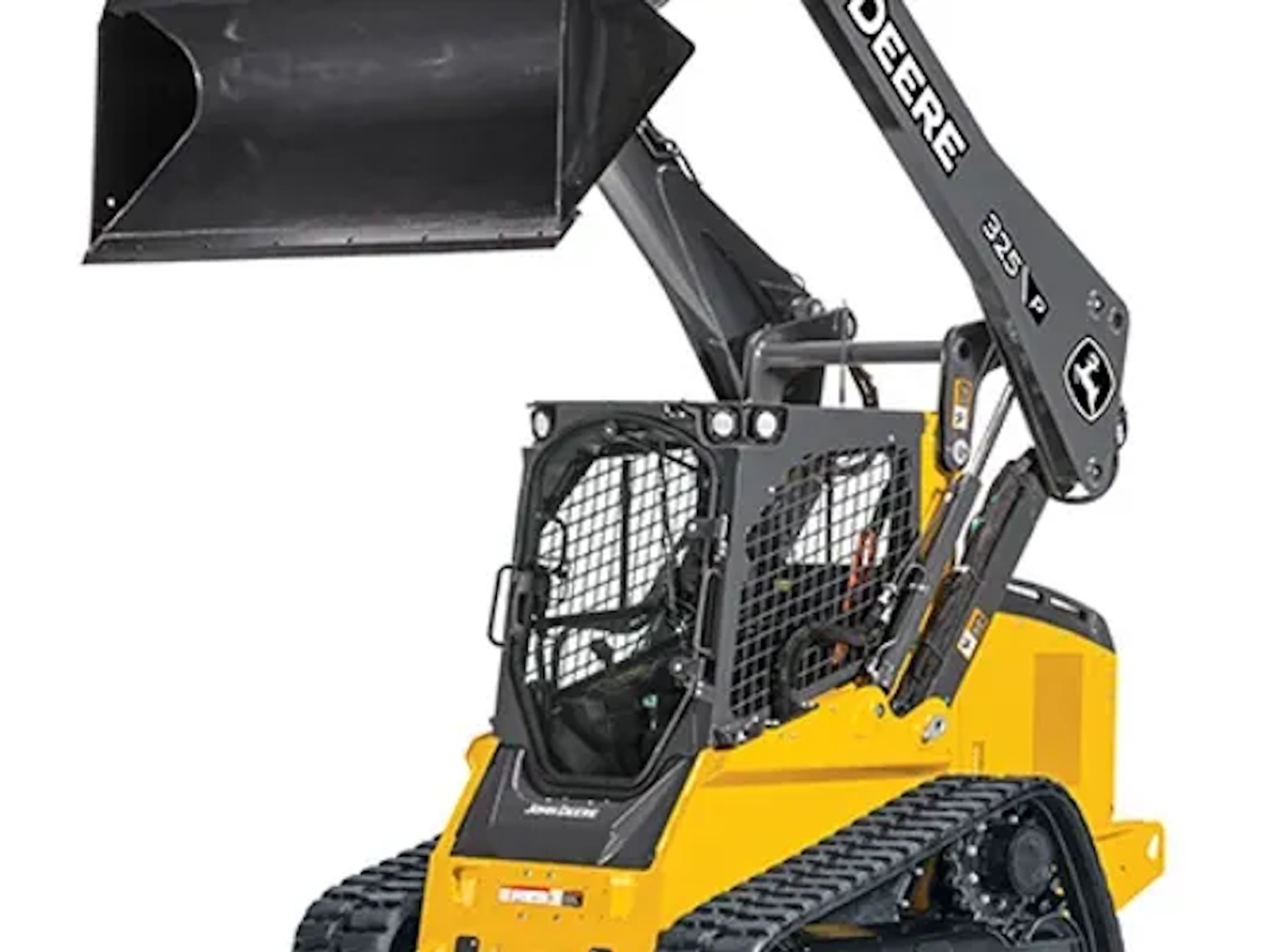

2027 John Deere Construction 325 P-Tier
The John Deere 325 P-Tier Compact Track Loader delivers 70 net hp, excellent visibility, all-day cab comfort, easy serviceability, and strong versatility with a wide range of attachments for demanding construction jobs.
Additional Attachment Offerings for Optimal Pairing
Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands change.
Excellent Visibility for Increased Situational and Jobsite Awareness

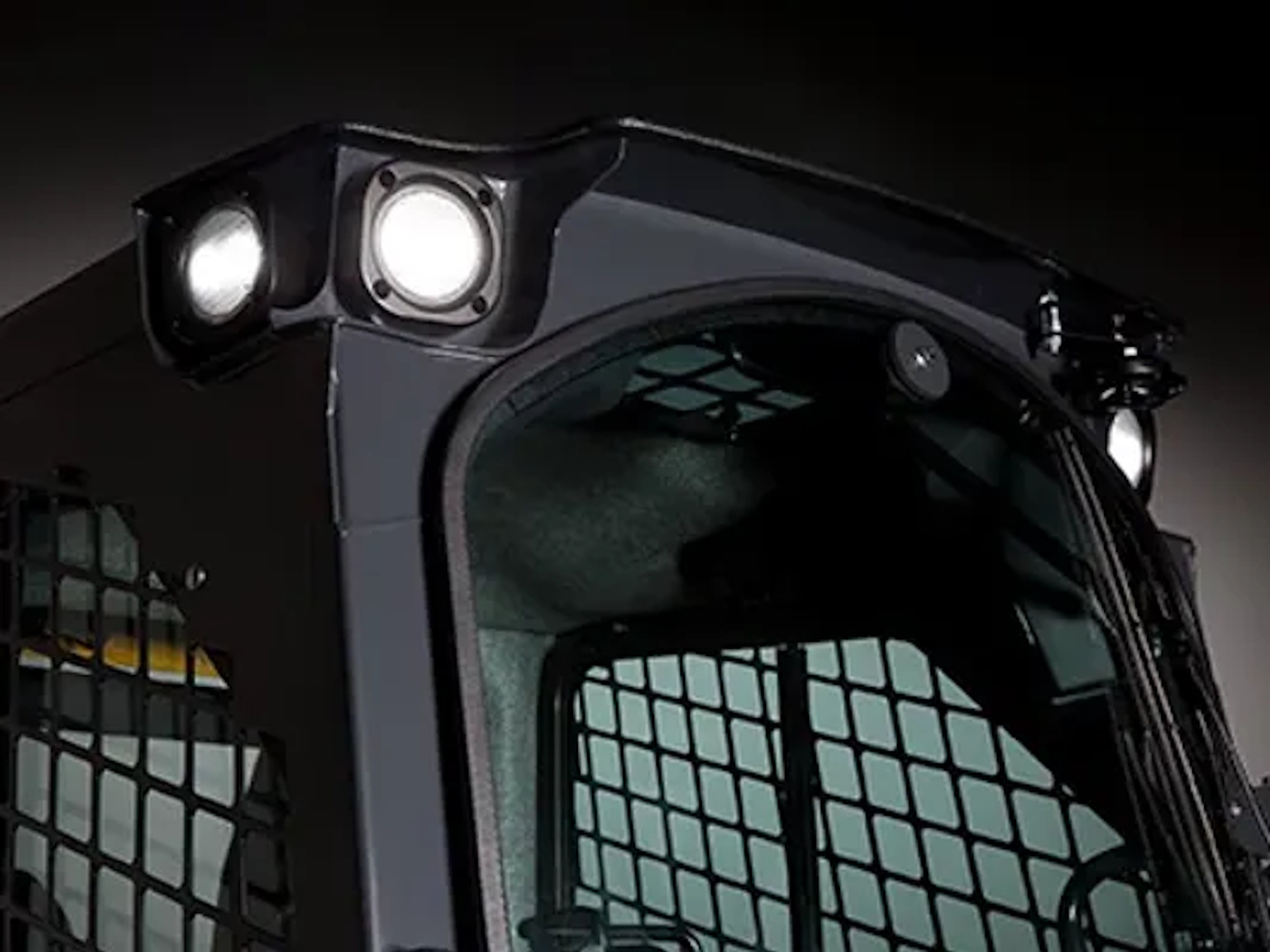

Enhanced visibility features enable the operator to view the jobsite to be as precise and productive as possible while also increasing jobsite awareness. Equipped with optional deluxe LED lights and a rearview camera, operators benefit from increased visibility, especially in low light conditions. Clear sight lines improve safety and precision on the jobsite.
Maximize Uptime With Easy Service Access
Easy serviceability minimizes downtime: the hood and side panels provide quick ground-level access to daily checks, and the cab swings up in under 5 minutes for major drivetrain access. JDLink™ alerts also help catch issues early.
Info
Condition
New
Specifications
Family
Yanmar®
Cylinders
4 | John Deere, heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Power/Horsepower
Net power (SAE J1349, ISO 9249) at 2500 rpm (hp): 70.0 hp | Rated gross power (ISO 14396) at 2500 rpm (hp): 74.0 hp | Rated gross power (ISO 14396) at 2600 rpm (hp): 74.0 hp
Torque
Peak torque at 1800 rpm (lb-ft): 207.0 lb-ft
Displacement
203.0 cu in.
Notes
Rated engine speed (rpm): 2500.0 rpm | Aspiration: Turbocharged | Air cleaner type: Dry dual element | Pump type: Axial-piston hydrostatic pump | Controls type: Electrohydraulic | Single speed (mph): 5.8 mph | Rubber tracks construction: New-generation, smooth-ride, long-life rubber with steel inserts | Track rollers (per side): Four triple-flange, smooth-ride, all-steel rollers | Track idlers (per side): Two double-flange, smooth-ride, all-steel rollers | Bearings/seals (rollers/idlers) type: Heavy-duty journal bearings and metal face seals | Tractive effort (lbf): 8500.0 lbf | Standard pump flow (gpm): 21.0 gpm | System pressure at couplers (psi): 3450.0 psiPerMin | Hydraulic horsepower standard flow (calculated) (hp): 41.7 hp | Hydraulic horsepower high flow (calculated) (hp): 63.6 hp | Voltage (V): 12.0 V | Structure: Rollover protective structure (ISO 3471) / falling object protective structure (ISO 3449) with quick-pivot standard | Auxiliary hydraulics: Digital | Diagnostics: Digital | Fuel gauge: Gauge | Hourmeter: Digital | Hydraulic oil filter restriction: Indicator light | Hydraulic oil temperature: Indicator light, audible warning, digital | Seat belt reminder: Indicator light | Hi-flow indicator: Indicator light | Warm-up indicator: Digital | Cooling system (qt): 13.2 qt | Hydraulic reservoir (gal.): 7.0 gal. | Hydraulic planetary gearbox (gal.): 0.84 gal. | Standard track (lb): 9500.0 lb. | Dump height, foundry bucket (in.): 102.1 in. | Dump height, foundry bucket (ft in.): 8, 6 ft, in. | Dump reach, foundry bucket (in.): 29.7 in. | Dump reach, foundry bucket (ft in.): 2, 6 ft, in. | Dump reach, construction bucket, no edge (in.): 37.0 in. | Dump reach, construction bucket, no edge (ft in.): 3, 1 ft, in. | Angle of departure degree: 30.5 degree (angle) | Front turn radius, foundry bucket (in.): 80.0 in. | Front turn radius, foundry bucket (ft in.): 6, 8 ft, in. | Dump angle (full lift height) degree: 41.0 degree (angle) | Bucket rollback (ground level) degree: 34.0 degree (angle) | SAE rated operating capacity at 35% tipping load (construction bucket) (lb): 2590.0 lb. | SAE rated operating capacity at 50% tipping load (construction bucket) (lb): 3700.0 lb. | Boom breakout force with foundry bucket (lb): 5250.0 lb. | Boom breakout force with construction bucket (lb): 4750.0 lb. | Bucket breakout force with foundry bucket (lb): 8750.0 lb. | Bucket breakout force with heavy-duty construction bucket (lb): 6000.0 lb.
Travel Speed (Max)
Travel speed low (mph): 5.2 mph | Travel speed high (mph): 8.2 mph
Brakes
Integral, automatic, spring-applied, hydraulically-released, wet-disk brake | Park brake engaged: Indicator light
Width
Track: 12.6 in. | Without bucket with 12.6-in. tracks (in.): 71.5 in. | Without bucket with 12.6-in. tracks (ft in.): 6, 0 ft, in. | Without bucket with 15.8-in. tracks (in.): 74.7 in. | Without bucket with 15.8-in. tracks (ft in.): 6, 3 ft, in.
Ground Contact Pressure
5.7 psi
Battery
750 standard | Voltage: Digital
Alternator
75.0 amp | Low voltage: Indicator light
Engine
Air filter restriction indicator :Indicator light | Coolant temperature Indicator light, audible warning, gauge, digital | Oil pressure: Indicator light, audible warning | Rpm indicator: Digital
Fuel Capacity
21.0 gal.
Oil Capacity
13.2 qt
Length
Without bucket (in.): 112.3 in. | Without bucket (ft in.): 9, 4 ft, in. | With foundry bucket (ft in.): 11, 4 ft, in.
Height
To top of rollover protective structure (ROPS) (in.): 81.1 in. | To top of rollover protective structure (ROPS) (ft in.): 6, 9 ft, in. | To hinge pin (in.): 126.1 in. | To hinge pin (ft in.): 10, 6 ft, in.
Ground Clearance
9.3 in.
Fuel Type
Diesel
