John Deere 331 P-Tier
Get in Touch
AT A GLANCE
Industry
Heavy Equipment
Make
John Deere Construction
Category
Compact Construction Equipment
Year
2027
Model
331 P-Tier
Trim
Base
Subcategory
Compact Track Loader
Description

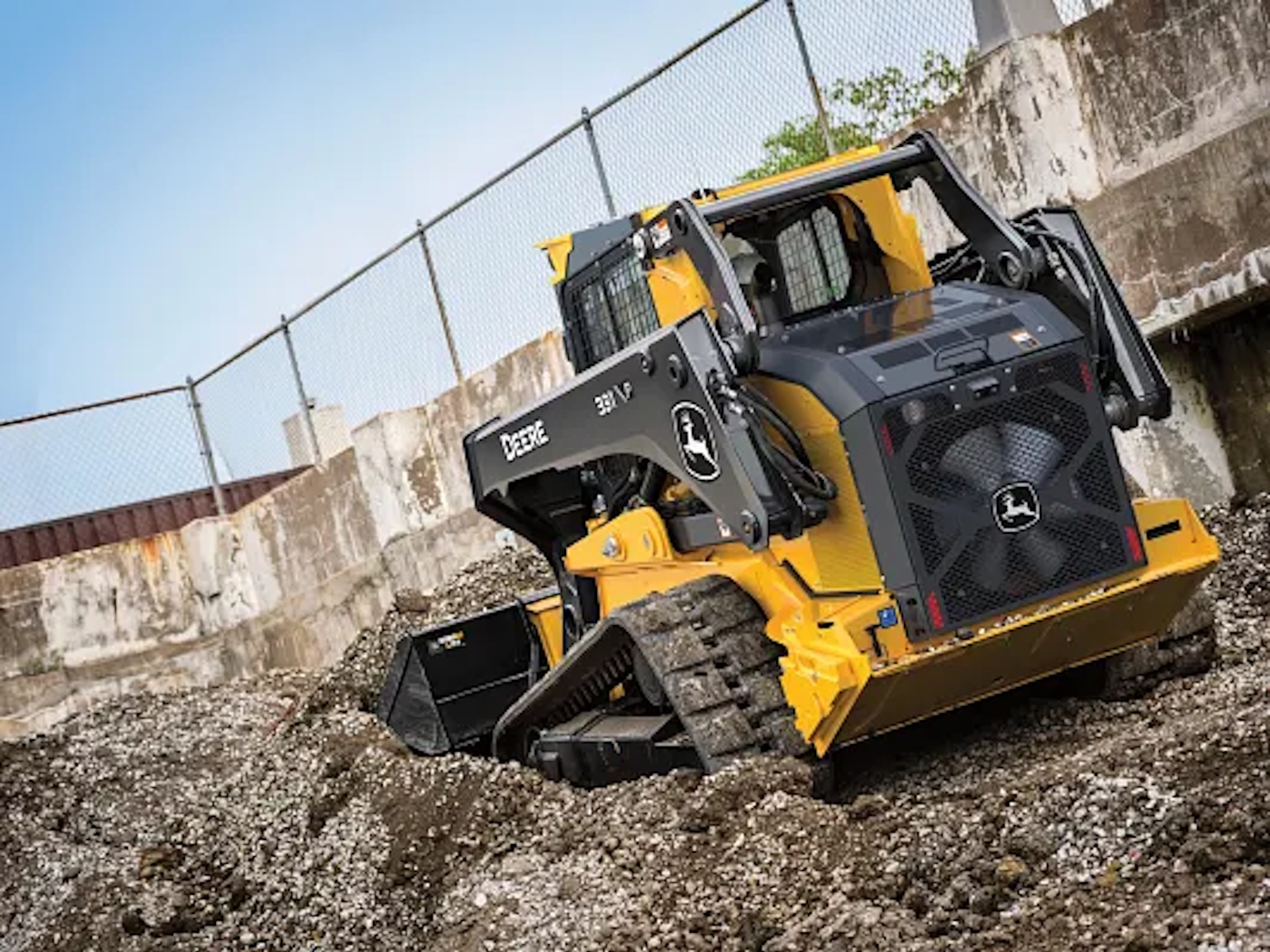

2027 John Deere Construction 331 P-Tier
The John Deere 331 P‑Tier Compact Track Loader delivers powerful lifting performance, a premium operator environment, and exceptional attachment versatility, built for contractors who need big‑machine capability in a compact, track‑driven package.
Powerful Vertical‑Lift Performance in a Compact Footprint
The 331 P‑Tier combines a vertical‑lift boom design with strong breakout force and a high rated operating capacity, enabling precise material placement and efficient truck loading. Its compact track platform delivers excellent traction and stability, helping operators work confidently on soft ground while maintaining the performance expected from a larger machine.

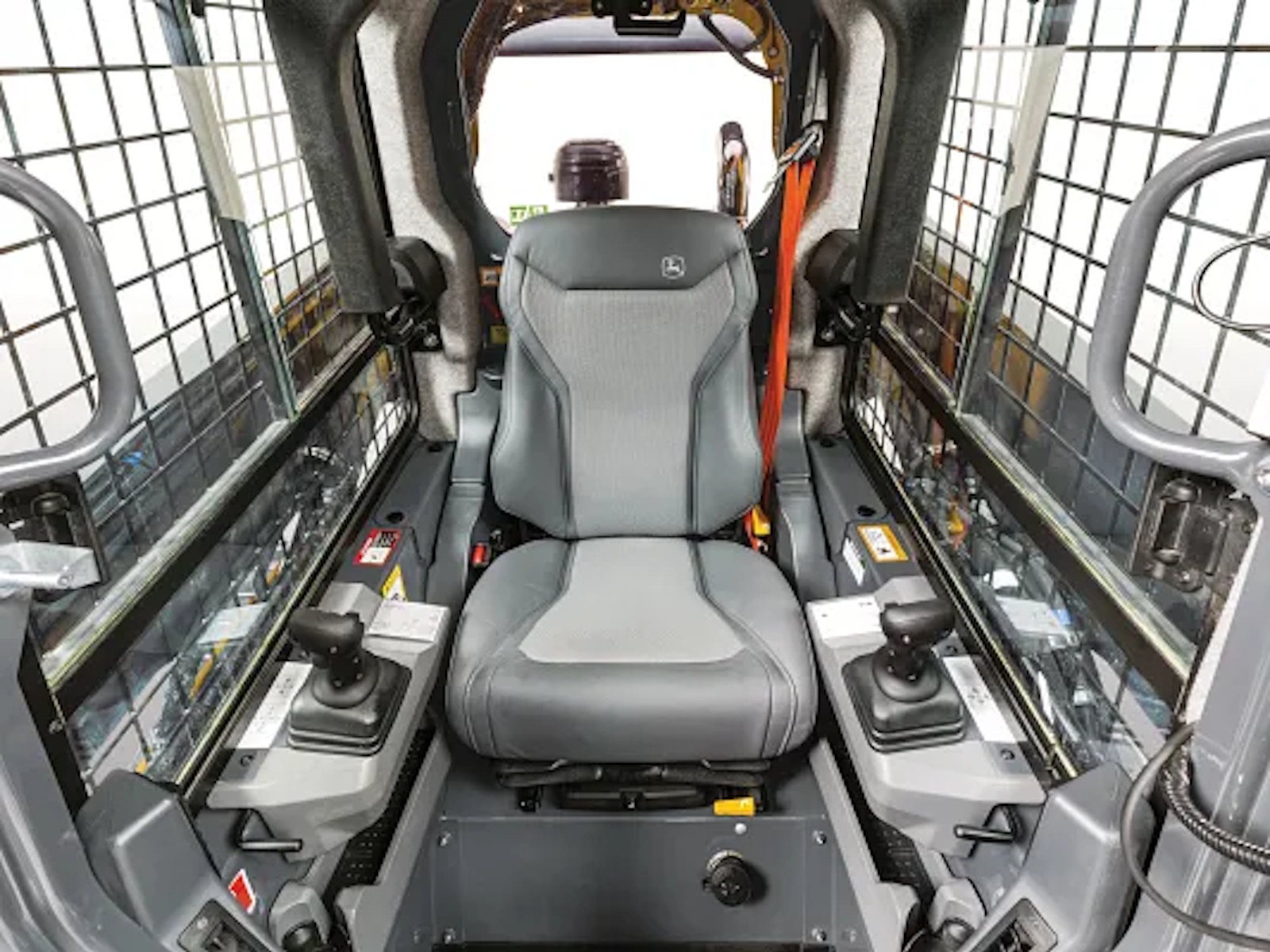

Premium Cab Designed for Long Workdays
A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable work environment. Increased glass area improves visibility, while ergonomically positioned joysticks, a redesigned switch module, and available heated and ventilated seating help reduce fatigue and keep operators productive throughout long shifts.

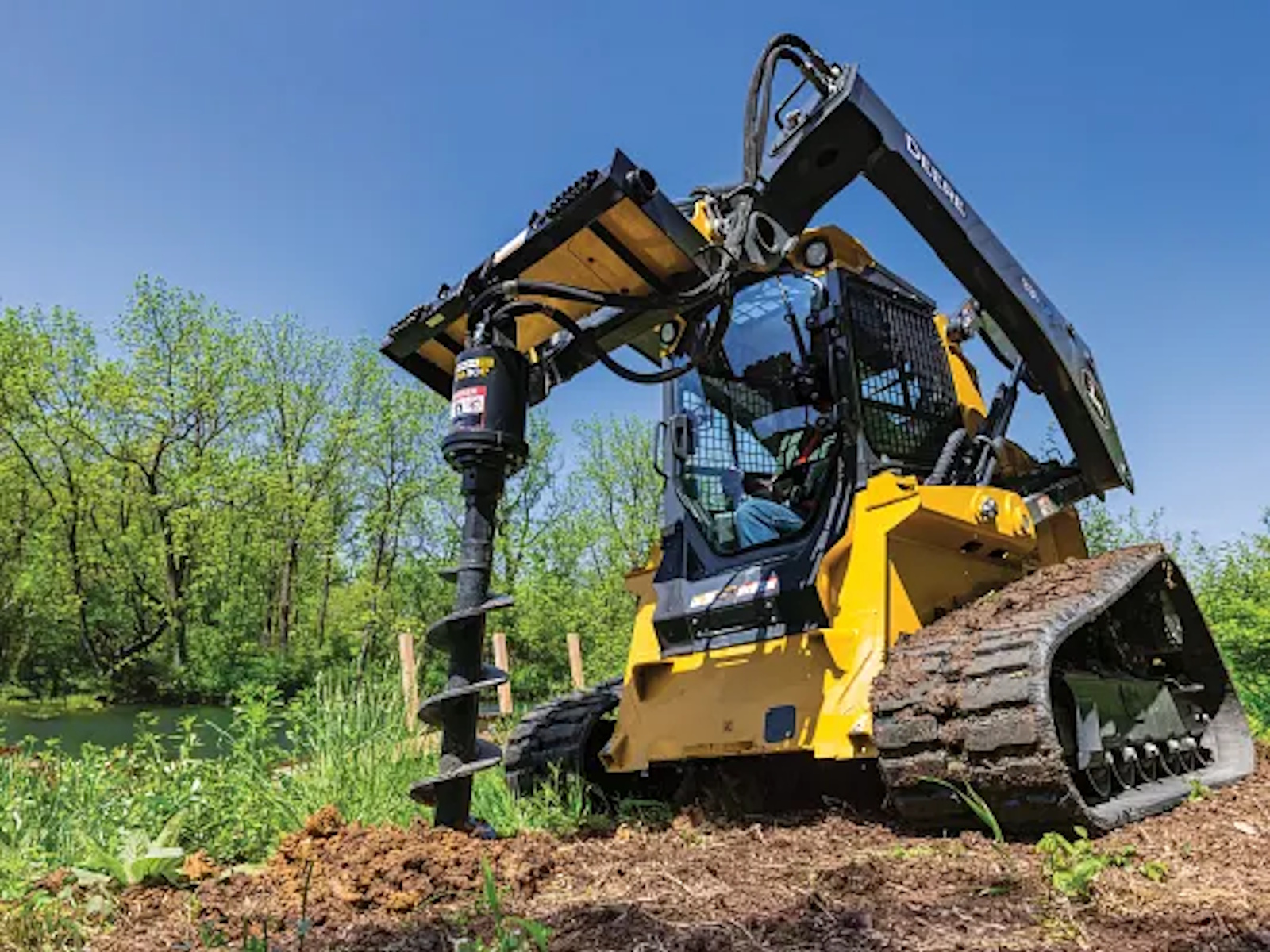

Additional Attachment Offerings for Optimal Pairing
Availability of over 100 John Deere attachments allows the 331 P‑Tier to move seamlessly between tasks such as grading, material handling, and site preparation. Advanced electrohydraulic controls make attachment operation smooth and responsive, while optional technology features—including grade‑management readiness—help operators work more efficiently and precisely as jobsite demands chan
Info
Condition
New
Specifications
Cylinders
4
Power/Horsepower
Net power (SAE J1349, ISO 9249) at 2500 rpm (hp): 94.96 hp | Rated gross power (ISO 14396) at 2500 rpm (hp): 97.89 hp | Rated gross power (ISO 14396) at 2600 rpm (hp): 98.0 hp
Torque
Peak torque at 1700 rpm (lb-ft): 281.75 lb-ft | Torque rise percent at 1700 rpm (%): 47.0 %
Displacement
186.33 cu in.
Notes
Aspiration: Turbocharged, intercooled | Air cleaner type: Dry dual element | Fan drive type: Variable speed hydraulic drive | Pump type: Axial piston hydrostatic pump | Controls type: Electrohydraulic | Travel speed low (mph): 5.5 mph | Travel speed high (mph): 8.5 mph | Rubber tracks construction: New-generation smooth-ride long-life rubber with steel inserts | Track rollers (per side): 5 triple-flange smooth-ride, all-steel rollers | Track idlers (per side): 2 double-flange smooth-ride, all-steel rollers | Tractive effort (lbf): 11500.0 lbf | Standard pump flow (gpm): 25.0 gpm | System pressure at couplers (psi): 3450.0 psiPerMin | Hydraulic horsepower standard flow (calculated) (hp): 50.32 hp | Hydraulic horsepower high flow (calculated) (hp): 78.5 hp | Cylinders type: John Deere Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins | Voltage (V): 12.0 V | Structure: ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot | Auxiliary hydraulics: Indicator light | Diagnostics: Digital | Diesel exhaust fluid (DEF) level indicator: Audible warning, Gauge | Hourmeter: Digital | Hydraulic oil filter restriction: Indicator light | Hydraulic oil temperature: Indicator light, Gauge, Digital | Hi-flow indicator Indicator: light | Warm-up indicator: Indicator light, Digital | Standard track (lb): 11914.0 lb. | Dump height, foundry bucket (in.): 106.08 in. | Dump height, foundry bucket (ft in.): 8, 10 ft, in. | Dump reach, foundry bucket (in.): 29.0 in. | Dump reach, foundry bucket (ft in.): 2, 5 ft, in. | Dump reach, construction bucket, no edge (in.): 36.2 in. | Dump reach, construction bucket, no edge (ft in.): 3, 0 ft, in. | Angle of departure degree: 30.0 degree (angle) | Front turn radius, foundry bucket (in.): 86.0 in. | Front turn radius, foundry bucket (ft in.): 7, 2 ft, in. | Dump angle (full lift height) degree: 48.0 degree (angle) | Bucket rollback (ground level) degree: 35.0 degree (angle) | Advertised tipping load with construction bucket (lbs): 9000.0 lb. | SAE rated operating capacity at 35% tipping load (construction bucket) (lb): 3150.0 lb. | SAE rated operating capacity at 50% tipping load (construction bucket) (lb): 4500.0 lb. | Boom breakout force with foundry bucket (lb): 6700.0 lb. | Boom breakout force with construction bucket (lb): 6000.0 lb. | Bucket breakout force with foundry bucket (lb): 11000.0 lb.
Brakes
Integral, automatic, spring applied, hydraulically released wet-disk brake | Park brake engaged: Indicator light
Width
Track: 15.8 in. | Without bucket with 15.8-in. tracks (in.): 78.86 in. | Without bucket with 15.8-in. tracks (ft in.): 6, 7 ft, in. | Without bucket with 17.7-in. tracks (in.): 80.7 in. | Without bucket with 17.7-in. tracks (ft in.): 6, 9 ft, in.
Ground Contact Pressure
5.1 psi
Battery
950 CCA | Voltage: Indicator light, Digital
Alternator
Rating with A/C (amp): 120.0 amp | Low voltage: Indicator light
Engine
Air filter restriction indicator: Indicator light | Coolant temperature: Indicator light, Gauge, Digital | Oil pressure: Indicator light | Rpm indicator: Digital
Fuel Capacity
29.5 gal.
Length
Without bucket (in.): 125.0 in. | Without bucket (ft in.): 10, 5 ft, in. | With foundry bucket (in.): 151.2 in. | With foundry bucket (ft in.): 12, 7 ft, in.
Height
To top of rollover protective structure (ROPS) (in.): 87.4 in. | To top of rollover protective structure (ROPS) (ft in.): 7, 3 ft, in. | To hinge pin (in.): 132.0 in. | To hinge pin (ft in.): 11, 0 ft, in.
Ground Clearance
9.75 in.
Fuel Type
Diesel
