John Deere 333 P-Tier
Get in Touch
AT A GLANCE
Industry
Heavy Equipment
Make
John Deere Construction
Category
Compact Construction Equipment
Year
2027
Model
333 P-Tier
Trim
Base
Subcategory
Compact Track Loader
Description
2027 John Deere Construction 333 P-Tier
The John Deere 333 P‑Tier Compact Track Loader delivers industry‑leading lift capacity, premium operator comfort, and SmartGrade‑ready technology, built for contractors who demand maximum productivity, precision, and control on every jobsite.

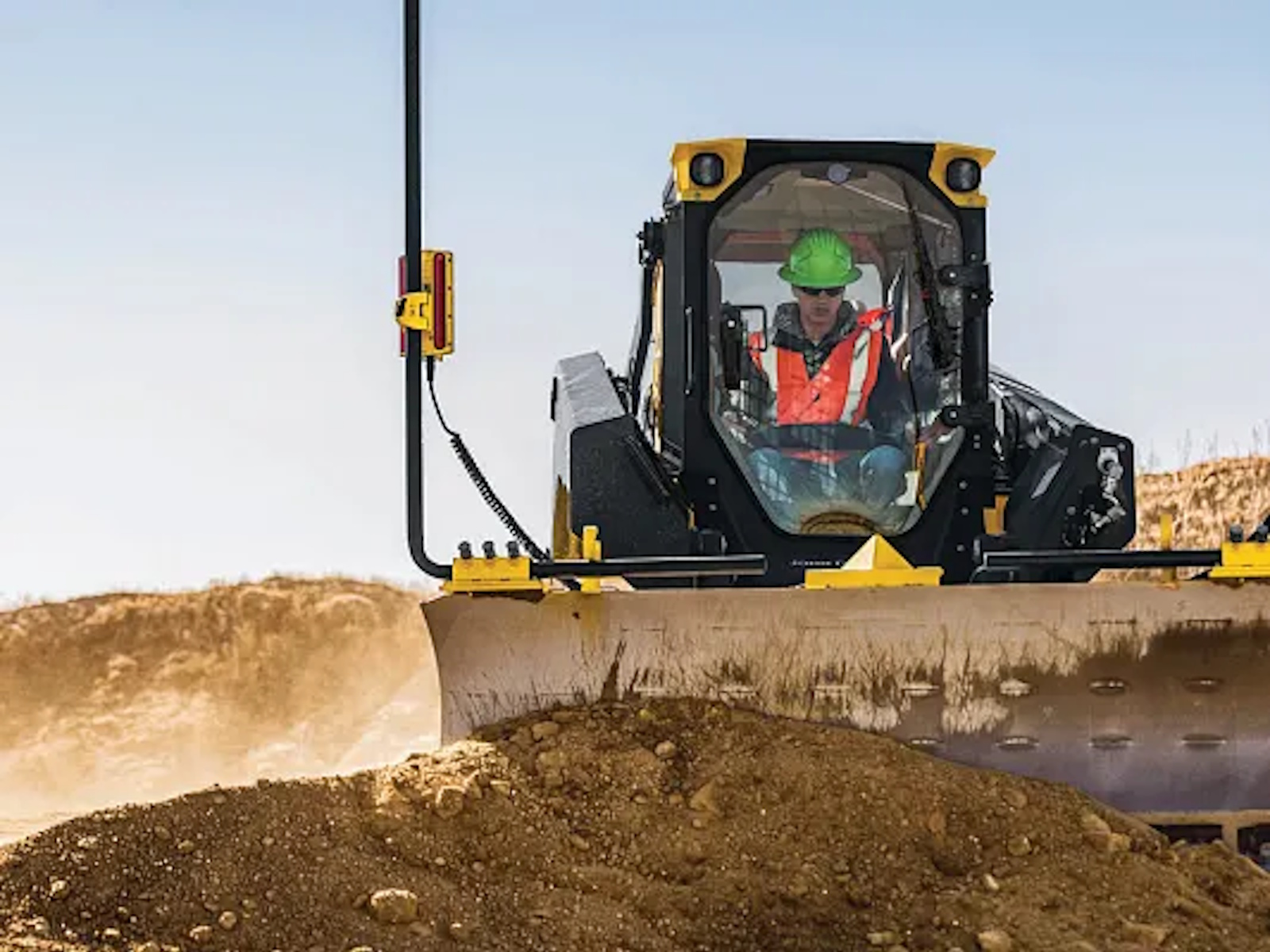

SmartGrade‑Ready Precision and Attachment Versatility
The 333 P‑Tier is grade‑management ready, enabling compatibility with John Deere SmartGrade™ technology to help operators grade faster and more accurately with fewer passes and less rework. Combined with support for over 100 John Deere attachments and smooth electrohydraulic controls, the 333 P‑Tier transitions easily between grading, material handling, site prep, and finish work—maximizing versatility as jobsite demands change.
High‑Capacity Vertical‑Lift Performance for Demanding Loads
The 333 P‑Tier combines a vertical‑lift boom path with high rated operating capacity and strong breakout force, making it ideal for truck loading, pallet handling, and bulk material movement. Its wide stance and track system provide excellent traction and stability, helping maintain performance and control on soft or uneven ground.

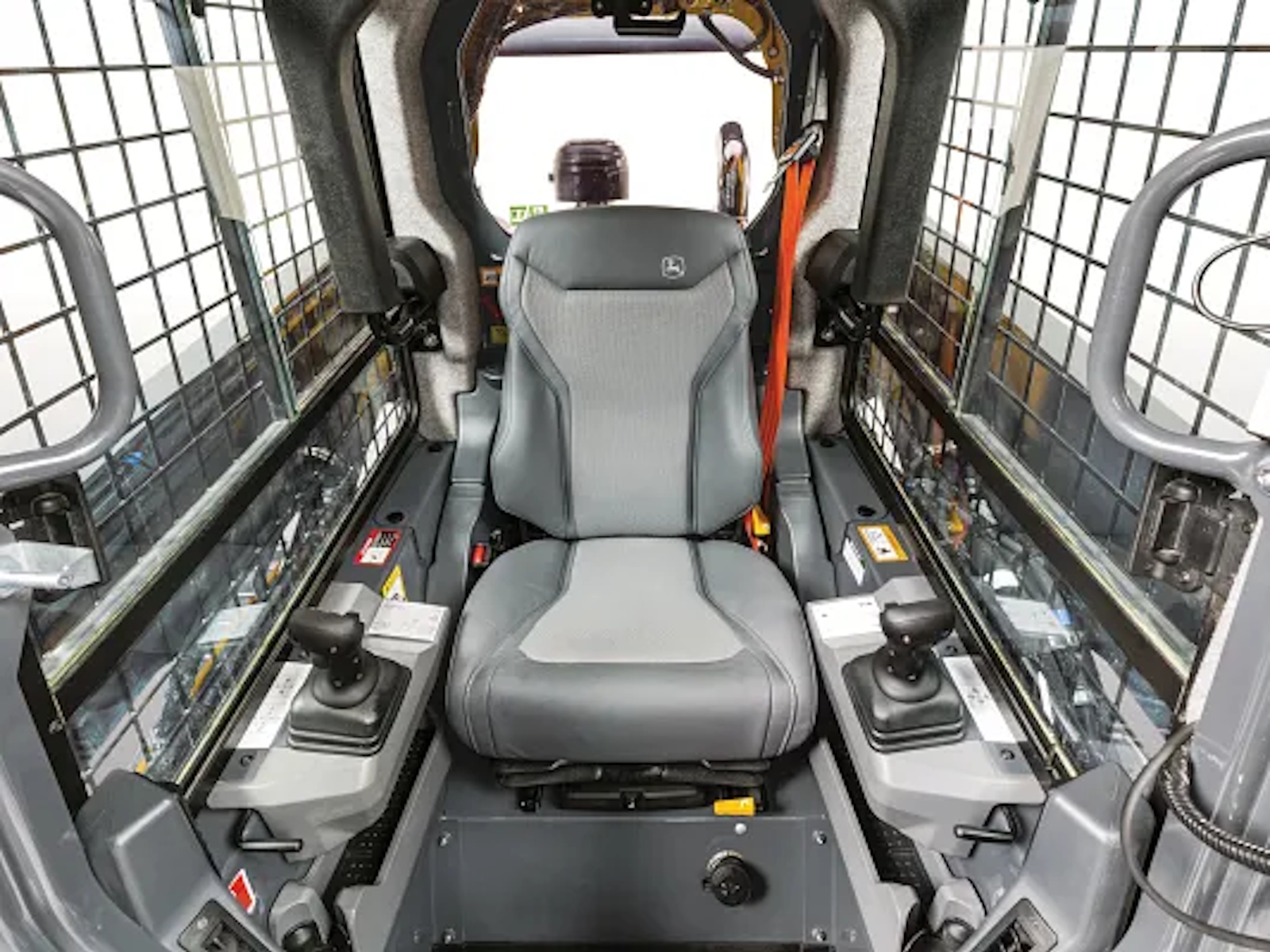

Premium Cab Designed for Long Workdays
A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable work environment. Increased glass area improves visibility, while ergonomically positioned joysticks, a redesigned switch module, and available heated and ventilated seating help reduce fatigue and keep operators productive throughout long shifts.
Info
Condition
New
Specifications
Cylinders
4 | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Power/Horsepower
Net power (SAE J1349, ISO 9249) at 2500 rpm (hp): 105.81 hp | Rated gross power (ISO 14396) at 2500 rpm (hp): 108.49 hp | Rated gross power (ISO 14396) at 2600 rpm (hp): 108.5 hp
Torque
290.6 lb-ft | Torque rise percent at 1700 rpm (%): 39.0 %
Displacement
186.33 cu in.
Notes
Rated engine speed (rpm): 2500.0 rpm | Aspiration: Turbocharged, intercooled | Air cleaner type: Dry dual element | Fan drive type: Variable speed hydraulic drive | Pump type: Axial piston hydrostatic pump | Controls type: Electrohydraulic | Travel speed low (mph): 5.5 mph | Travel speed high (mph): 8.5 mph | Rubber tracks construction: New-generation smooth-ride long-life rubber with steel inserts | Track rollers (per side): 5 triple-flange smooth-ride, all-steel rollers | Track idlers (per side): 2 double-flange smooth-ride, all-steel rollers | Tractive effort (lbf): 11500.0 lbf | Standard pump flow (gpm): 25.0 gpm | System pressure at couplers (psi): 3500.0 psiPerMin | Hydraulic horsepower standard flow (calculated) (hp): 51.05 hp | Hydraulic horsepower high flow (calculated) (hp): 89.85 hp | Voltage (V): 12.0 V | Structure: ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot | Auxiliary hydraulics: Indicator light | Diagnostics: Digital | Fuel gauge: Gauge | Diesel exhaust fluid (DEF) level indicator: Audible warning, Gauge | Hourmeter: Digital | Hydraulic oil filter restriction: Indicator light | Hydraulic oil temperature: Indicator light, Gauge, Digital | Hi-flow indicator: Indicator light | Warm-up indicator: Indicator light, Digital | Machine configuration that will produce base machine weight (ISO 6016): Standard 17.7-in. (450 mm) Track | Standard track (lb): 12300.0 lb. | Dump height, foundry bucket (in.): 106.08 in. | Dump height, foundry bucket (ft in.): 8, 10 ft, in. | Dump reach, foundry bucket (in.): 29.0 in. | Dump reach, foundry bucket (ft in.): 2, 5 ft, in. | Dump reach, construction bucket, no edge (in.): 36.2 in. | Dump reach, construction bucket, no edge (ft in.): 3, 0 ft, in. | Angle of departure degree: 30.0 degree (angle) | Front turn radius, foundry bucket (in.): 86.0 in. | Front turn radius, foundry bucket (ft in.): 7, 2 ft, in. | Dump angle (full lift height) degree: 48.0 degree (angle) | Bucket rollback (ground level) degree: 35.0 degree (angle) | SAE rated operating capacity at 35% tipping load (construction bucket) (lb): 3290.0 lb. | SAE rated operating capacity at 50% tipping load (construction bucket) (lb): 4700.0 lb. | Boom breakout force with foundry bucket (lb): 8500.0 lb. | Boom breakout force with construction bucket (lb): 7800.0 lb. | Bucket breakout force with foundry bucket (lb): 13750.0 lb.
Brakes
Integral, automatic, spring applied, hydraulically released wet-disk brake | Park brake engaged: Indicator light
Width
Track: 17.7 in. | Without bucket with 15.8-in. tracks (in.): 78.86 in. | Without bucket with 15.8-in. tracks (ft in.): 6, 7 ft, in. | Without bucket with 17.7-in. tracks (in.): 80.7 in. | Without bucket with 17.7-in. tracks (ft in.): 6, 9 ft, in.
Ground Contact Pressure
4.75 psi
Battery
950 CCA | Voltage: Indicator light, Digital
Alternator
120.0 amp | Low voltage: Indicator light
Engine
Air filter restriction indicator: Indicator light | Coolant temperature: Indicator light, Gauge, Digital | Oil pressure: Indicator light | Rpm indicator: Digital
Fuel Capacity
36.0 gal.
Length
Without bucket (in.): 125.0 in. | Without bucket (ft in.): 10, 5 ft, in. | With foundry bucket (in.): 151.2 in. | With foundry bucket (ft in.): 12, 7 ft, in.
Height
To top of rollover protective structure (ROPS) (in.): 87.4 in. | To top of rollover protective structure (ROPS) (ft in.): 7, 3 ft, in. | To hinge pin (in.): 132.0 in. | To hinge pin (ft in.): 11, 0 ft, in.
Ground Clearance
9.75 in.
Fuel Type
Diesel
