John Deere 335 P-Tier
Get in Touch
AT A GLANCE
Industry
Heavy Equipment
Make
John Deere Construction
Category
Compact Construction Equipment
Year
2027
Model
335 P-Tier
Trim
Base
Subcategory
Compact Track Loader
Description
2027 John Deere Construction 335 P-Tier
The John Deere 335 P‑Tier Compact Track Loader delivers maximum power, advanced grade‑management technology, and premium operator comfort, built for high‑production work where precision and performance matter most.
Premium Cab, Advanced Hydraulics, and Attachment Versatility

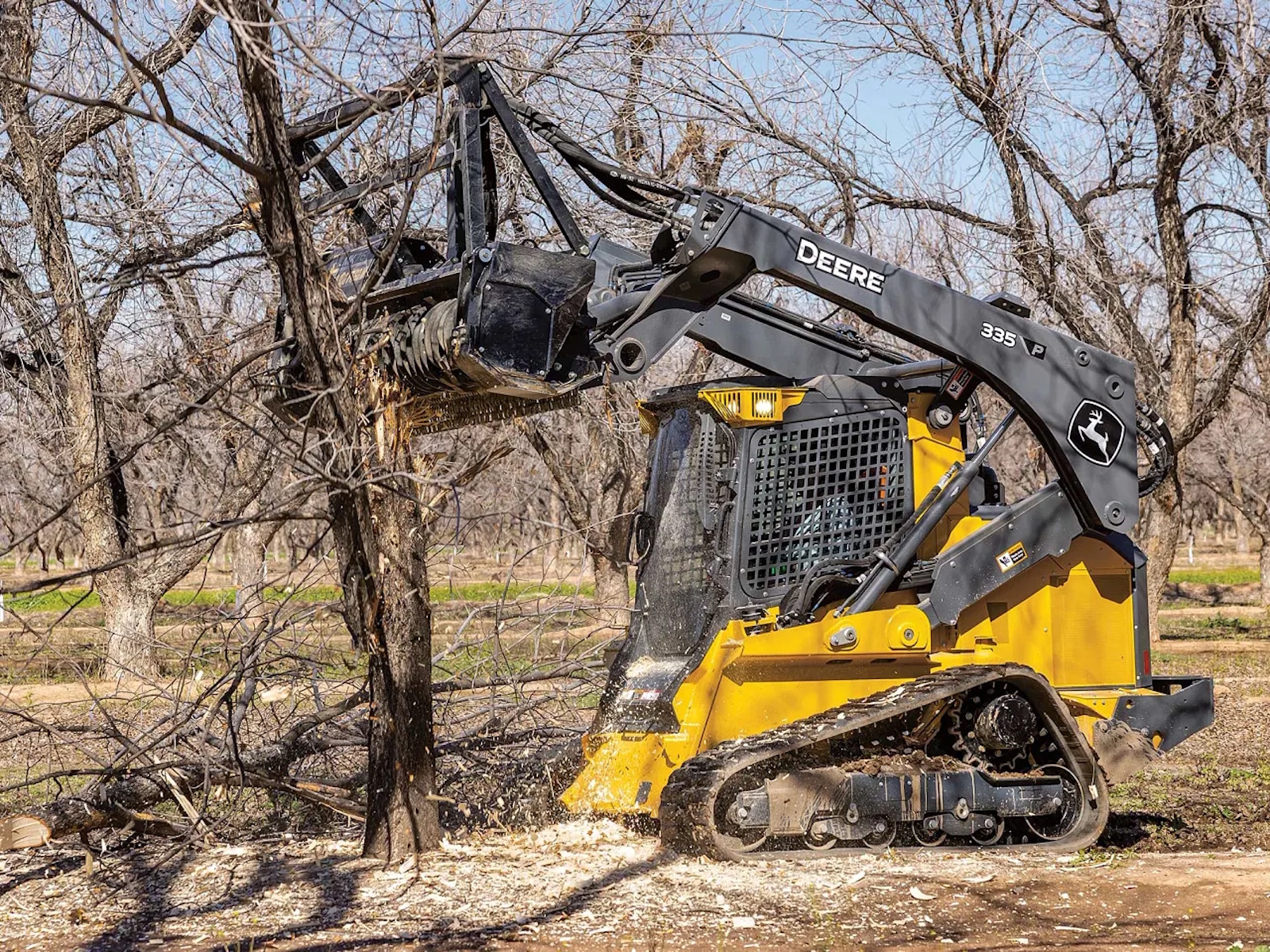

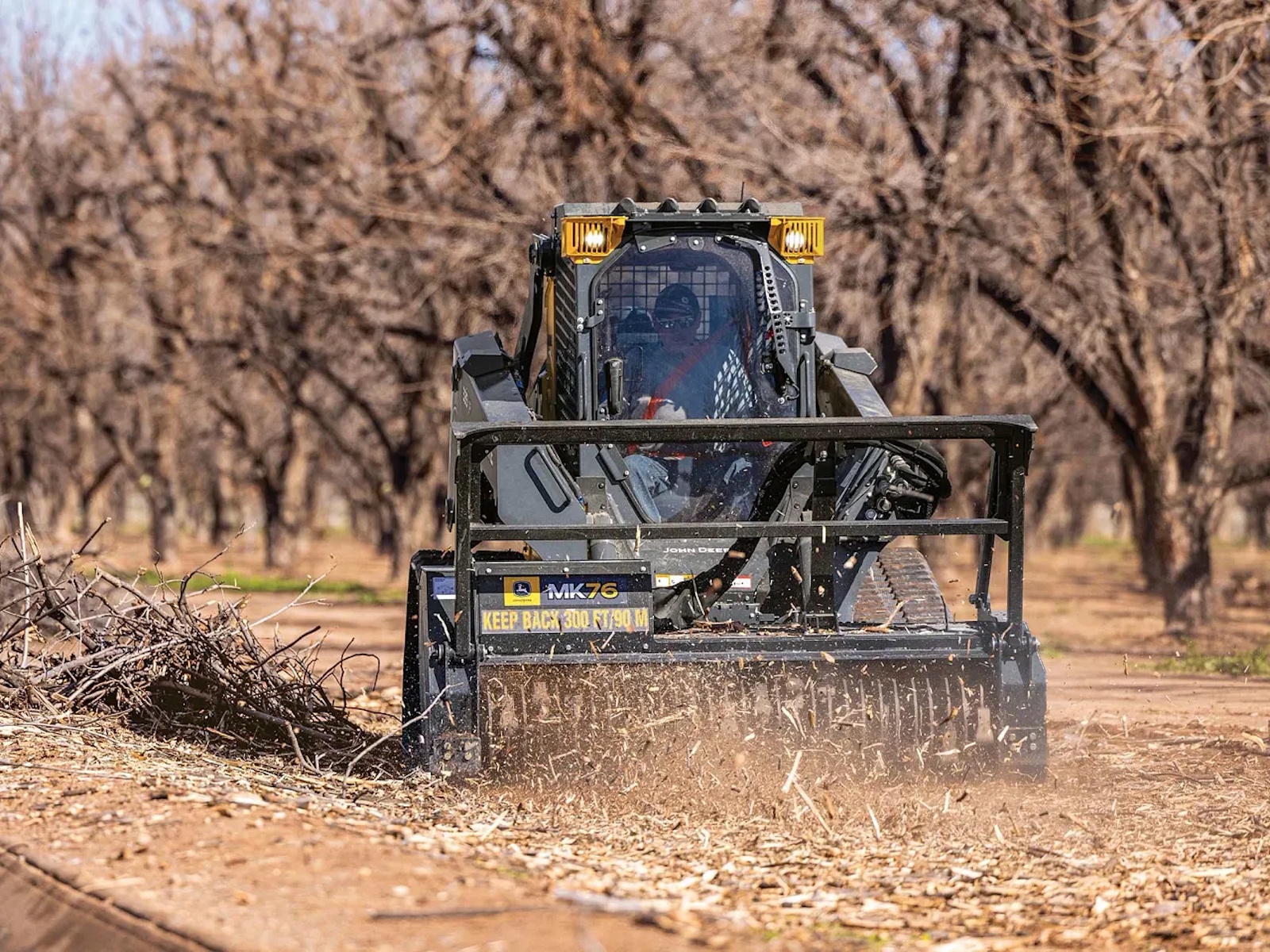

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable operator environment, with features such as a touchscreen display, hands‑free Bluetooth calling, and ergonomic electrohydraulic controls. High‑flow hydraulics and compatibility with over 100 John Deere attachments allow the 335 P‑Tier to take on everything from grading and material handling to mulching and land clearing—making it one of the most versatile CTLs in the lineup.
Maximum Power and Lift for High‑Production Work
With 118 gross horsepower and a high rated operating capacity, the 335 P‑Tier is engineered to handle demanding applications such as site development, roadbuilding, and vegetation management. Its vertical‑lift boom design delivers excellent reach and stability for truck loading and material placement, while the tracked undercarriage provides traction and control on soft or uneven ground.

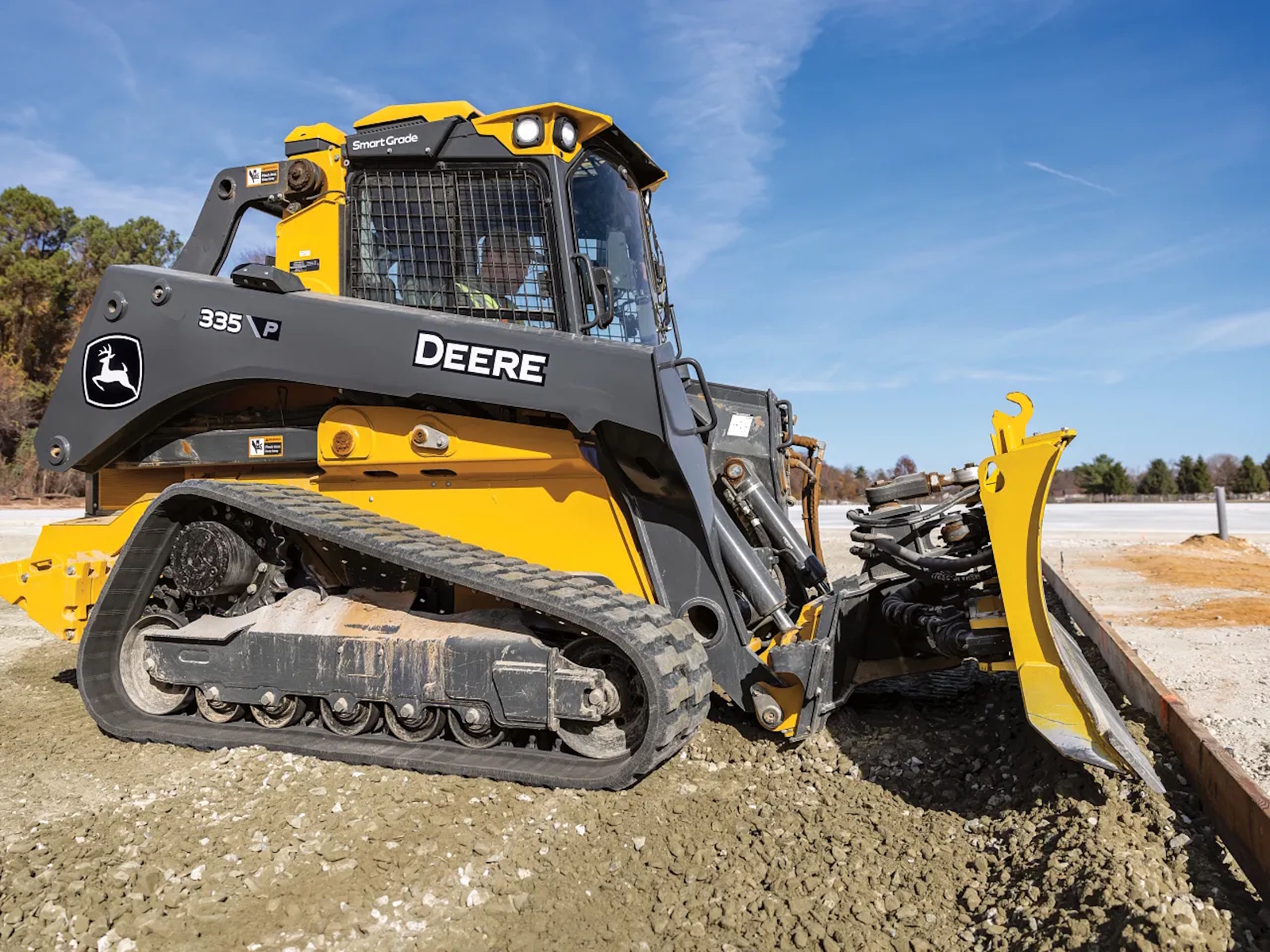

SmartGrade™ Technology for Precision and Efficiency
The 335 P‑Tier can be equipped with John Deere SmartGrade™ technology, along with slope control and laser slope control options, helping operators grade faster and more accurately with fewer passes and less rework. By automating blade movement and maintaining consistent grade, SmartGrade improves productivity and makes it easier for operators of all experience levels to achieve quality results the first time.
Info
Condition
New
Specifications
Family
Yanmar®
Cylinders
4 | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Power/Horsepower
Net power (SAE J1349, ISO 9249) at 2500 rpm (hp): 114.66 hp | Rated gross power (ISO 14396) at 2500 rpm (hp): 118.0 hp | Rated gross power (ISO 14396) at 2600 rpm (hp): 118.0 hp
Torque
291.34 lb-ft | Torque rise percent at 1700 rpm (%): 39.0 %
Displacement
186.33 cu in.
Notes
Rated engine speed (rpm): 2500.0 rpm | Aspiration: Turbocharged, intercooled | Air cleaner type: Dry dual element | Fan drive type: Variable speed hydraulic drive | Pump type: Axial piston hydrostatic pump | Controls type: Electrohydraulic | Travel speed low (mph): 5.5 mph | Travel speed high (mph): 8.5 mph | Rubber tracks construction: New-generation smooth-ride long-life rubber with steel inserts | Ground pressure standard track (psi): 4.76 psi | Track rollers (per side): 5 triple-flange smooth-ride, all-steel rollers | Track idlers (per side): 2 double-flange smooth-ride, all-steel rollers | Tractive effort (lbf): 11500.0 lbf | Standard pump flow (gpm): 25.0 gpm | System pressure at couplers (psi): 3500.0 psiPerMin | Hydraulic horsepower standard flow (calculated) (hp): 51.05 hp | Hydraulic horsepower high flow/high pressure (calculated) (hp): 102.68 hp | Voltage (V): 12.0 V | Structure: ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot | Auxiliary hydraulics: Indicator light | Diagnostics: Digital | Fuel gauge: Gauge | Diesel exhaust fluid (DEF) level indicator: Audible warning, Gauge | Hourmeter: Digital | Hydraulic oil filter restriction: Indicator light | Hydraulic oil temperature: Indicator light, Gauge, Digital | Hi-flow indicator: Indicator light | Warm-up indicator: Indicator light, Digital | Standard track (lb): 12320.0 lb. | Dump height, foundry bucket (in.): 106.08 in. | Dump height, foundry bucket (ft in.): 8, 10 ft, in. | Dump reach, foundry bucket (in.): 29.0 in. | Dump reach, foundry bucket (ft in.): 2, 5 ft, in. | Dump reach, construction bucket, no edge (in.): 36.2 in. | Dump reach, construction bucket, no edge (ft in.): 3, 0 ft, in. | Angle of departure degree: 24.7 degree (angle) | Front turn radius, foundry bucket (in.): 86.0 in. | Front turn radius, foundry bucket (ft in.): 7, 2 ft, in. | Dump angle (full lift height) degree: 48.0 degree (angle) | Bucket rollback (ground level) degree: 35.0 degree (angle) | SAE rated operating capacity at 35% tipping load (construction bucket) (lb): 4025.0 lb. | SAE rated operating capacity at 50% tipping load (construction bucket) (lb): 4800.0 lb. | Boom breakout force with foundry bucket (lb): 8500.0 lb. | Boom breakout force with construction bucket (lb): 7800.0 lb. | Bucket breakout force with foundry bucket (lb): 13800.0 lb.
Brakes
Integral, automatic, spring applied, hydraulically released wet-disk brake | Park brake engaged: Indicator light
Width
Track: 17.7 in. | Without bucket with 15.8-in. tracks (in.): 78.86 in. | Without bucket with 15.8-in. tracks (ft in.): 6, 7 ft, in. | Without bucket with 17.7-in. tracks (in.): 80.7 in. | Without bucket with 17.7-in. tracks (ft in.): 6, 9 ft, in.
Battery
950 CCA | Voltage: Indicator light, Digital
Alternator
120.0 amp | Low voltage: Indicator light
Engine
Air filter restriction indicator: Indicator light | Coolant temperature: Indicator light, Gauge, Digital | Oil pressure: Indicator light | Rpm indicator: Digital
Fuel Type
Diesel
Fuel Capacity
36.0 gal.
Length
Without bucket (in.): 125.0 in. | Without bucket (ft in.): 10, 5 ft, in. | With foundry bucket (in.): 151.2 in. | With foundry bucket (ft in.): 12, 7 ft, in.
Height
To top of rollover protective structure (ROPS) (in.): 87.4 in. | To top of rollover protective structure (ROPS) (ft in.): 7, 3 ft, in. | To hinge pin (in.): 132.0 in. | To hinge pin (ft in.): 11, 0 ft, in.
Ground Clearance
9.75 in.
